Best Practices

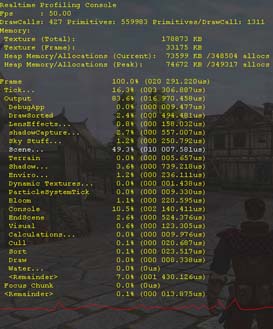

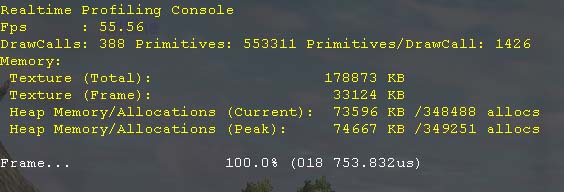

This lesson describes ways of minimising the the impact of artwork on game performance.

BigWorld allows characters to share animations, as long as the bones used to rig each character share the same name structure – animations are shared by using a common LOD model.

It is recommended that animations only be shared between characters using exactly the same skeletal rig. Sharing animations between models of different size or shape will result in the models vertice's being transformed to fit the new rig.

It performs the steps described below (assuming the LOD configuration depicted in the screenshot below:

1 Action Matcher calls an animation to be played in the game.

2 The currently rendered LOD model is queried, to check if it has the appropriate animation. If it does not, then Action Matcher looks down the LOD tree (LODs called further away), checking them for the animation.

In the example below, if ranger.model is being rendered and the walk animation is called, then the ranger.model will play the generic male walk animation assigned to base.model. That is so because ranger.model and rangerlod.model do not have specialised walk animations of their own.

Action Matcher does not look up a tree, so in the example below, if loddy.model is being rendered, and the ranger.model specific animation firegun_ranger is called, then no animation will be played. This is usually not a problem, as loddy.model is rendered at such great distances that the animation would be invisible. This means that animations that would otherwise be invisible at such great distances are not played, increasing game performance.

The table below described the LOD models used in this example:

LOD Model	Description
`loddy.model`	This is a single-piece mesh 50-polygon character, viewed at such distances that it is unnecessary to utilise all skeletal bones to deform its mesh. Although it was rigged using the exact same skeleton as `ranger.model`, the only bones set to influence the mesh were: `Right_upperarm` `Left_uppperarm` `Left_thigh` `Right_thigh` The centre node pelvis. Although the animation contains detailed information about the other joints, it is unnecessary to use it, as the model is rendered so far away that these movements would never be seen. This decreases the number of transforms the vertex shader needs to perform and increases performance. Only the most common animations are assigned to `loddy`, such as `walk` and `jump`. For details on how to reduce node influence in LOD models, see the lesson Create Level-of-Detail Mesh for Characters,Node LOD Theory.
`base.model`	This is a low-poly (300-polygon) single-mesh generic male character. Even though the animations used to deform `base.model` contain more than 17 bones, the `base.model` mesh is deformed by less than 17 bones. When `base.model` was rigged, the hands were linked to the forearm, instead of each individual finger being influenced by separate bones. Hand and finger animations are not visible at large distances, so there is little need to show them. This model has all male specific animations assigned to it. All male bipedal characters should use `base.model` as a LOD so they can share these generic animations. For example, animations assigned to the base model may include male variations of: `walk` `run` `turn` `jump`
`rangerlod.model`	This is a lower poly version (1,700-poly) of `ranger.model`. Although the mesh is broken up in segments, the smaller detail animations are not used. For example, the fingers are not individually animated. All specific `ranger` animations are assigned to this model, such as: `ranger_attack` `ranger_sneek` `ranger_fight`
`ranger.model`	This is the final high-poly version (2,500-poly) of the model. The model is now rendered close up, so each individual bone is used – fingers, ponytails, and clothing must animate independently. The complexity of your animation tree depends on the number of characters sharing skeletal rig structure and animations. If each character animation is to be unique down to the finest detail, then there is little need to share animations between them. In the example below, `base_male.model` is used to share animations between two models that both use the same skeletal rig: `ranger` and `scout`. Note that in the example below the animation to be shared from `base_male.model` to its two higher LODs must contain all nodes that you wish to use for those higher LODs. So make sure that you add all skeleton's nodes to the skin modifier, even if `base_male.model` does not use every node.

dPVS and Umbra are third party occlusion culling solutions that can be used to improve the performance of the game by avoiding processing of 3d content which is hidden from view.

DPVS

Occlusion culling is performed on the CPU, there is some overhead in calculating when an object is being used as an occluder. For this reason it's important to only flag those objects which are naturally good occluders. e.g. larger objects like walls, and houses. If smaller objects are used as occluders they can decrease game performance.

To flag an object as an occluder

Umbra

Occlusion culling is performed on the graphics card and as a result there is no overhead in testing an object as an occluder. Umbra requires no artist assistance.

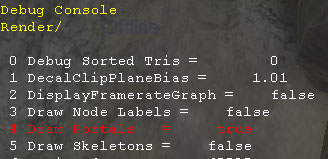

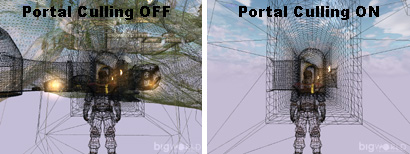

Umbra understands BigWorlds portal system and as a result can improve portal culling by using game geometry such as shells and their contents to occlude portals.

Creating assets for DPVS and Umbra

Umbra basically uses line of sight to determine if an object should be drawn or not. Consequently, it's extremely important to ensure that models which should block the line of sight of other models (walls, shells, and buildings) need to have good modelling integrity. Good modelling integrity means no holes, un welded vertices, or broken edges. If models contain holes they will not be able to cull geometry correctly resulting in decreased game performance. You can check for culling problems by turning on wire frame mode whilst in the client or WorldEditor. If objects are being drawn behind walls and buildings then there may be a problem.

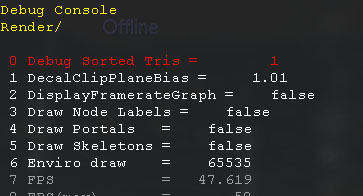

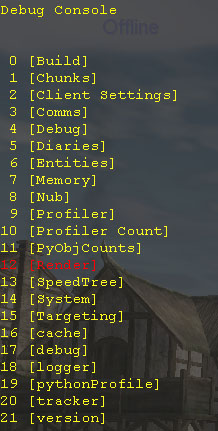

Wire frame mode is enabled by pressing ~(tilde) + F8 in the client, or in the options menu of WorldEditor

3dsMax's STL Check Modifier can identify problems like holes and un welded verts with a model.

Maya contains a similar function called polygon cleanup Mesh - Cleanup.

Model Editors Check For Sparkles can be used to identify holes in a mesh. It colours models black and the background white, this makes it easier to see tiny holes and cracks.

Using the Client Access Tool (CAT)

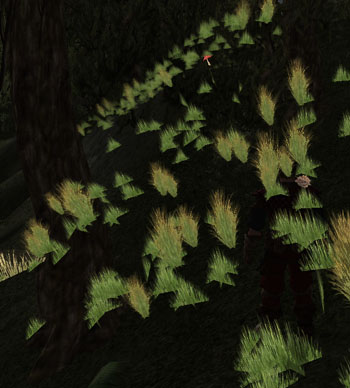

Many games tend to adopt the dark is cool approach, resulting in a world that is overall dark in appearance, and only use half the available colour range. To tackle this issue, we have incorporated a realtime histogram into WorldEditor and into the BigWorld client, allowing you to check the range of colours and luminance used by your game assets.

The histogram can be viewed in WorldEditor in the Histogram panel, or via the Histogram Console, which can be activated by pressing F11 in WorldEditor, or by pressing F4 in the Client Engine.

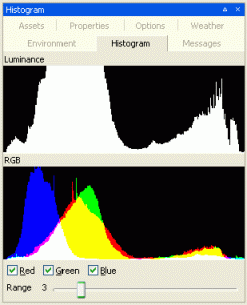

WorldEditor's Histogram panel

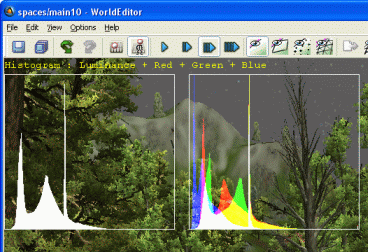

WorldEditor's Histogram console

The keyboard shortcuts available in the Histogram Console are described in the table below (please note that the alphanumeric must be used):

Key	Action
`0`	Toggles the graphing of luminance.
`1`	Toggles the graphing of the red component in the RGB histogram.
`2`	Toggles the graphing of the green component in the RGB histogram.
`3`	Toggles the graphing of the blue component in the RGB histogram.
`4`	Toggles the rendering of the scene background on the histogram.
`5`	Decreases the vertical range ratio of the Luminance and RGB histograms.
`6`	Increases the vertical range ratio of the Luminance and RGB histograms.

Billboards

For better visual results and runtime performance, BigWorld's 3D engine renders trees' billboards as crossed quads, without spin to face.

For each tree, BigWorld's 3D engine will render as many 360° billboards as have been exported into the composite texture map, although three billboards should yield the best visual results. If available on the exported map, one horizontal billboard will also be rendered.

When exporting a tree, SpeedTreeCAD pre-renders billboards into the composite texture map. Due to that, a billboard will exactly match a tree only when it uses the same seed number as the one used when exporting the .spt file.
To make sure that BigWorld uses the same seed number used when exporting the tree, set it to 1 in WorldEditor.

Optimisations

To improve memory and runtime performance, BigWorld's 3D engine uses the following techniques:

Instancing – A single copy of a tree is kept in memory for all its instances.

Batching – When rendering trees, BigWorld's 3D engine sorts the primitives in order to reduce the number of state changes required to render all trees.

Compounding – Trees are compiled together into few vertex buffers, to be rendered with fewer draw calls.

The higher the ratio of trees-to-tree-types, the better these techniques will work. Thus, in order to maximise time and memory savings, world builders must try to minimise the number of distinct trees placed in the world.

Distinct trees are the ones with different source .spt files or seed numbers.

The Compounding technique is applied only to billboards, due to the higher memory and processing requirements of compounding higher detail trees.

In order to be able to render billboards with a single draw call, a texture atlas containing the billboards for all tree types, at all viewing angles, must be built. This is automatically taken care by the engine, but world builders might need to tweak the size of the texture atlas to hold all billboards required.

If the texture atlas is not large enough to hold all billboards, a warning will be issued into the debug output, and the billboards will start to overlap themselves in the atlas, resulting in wrong texture mapping.

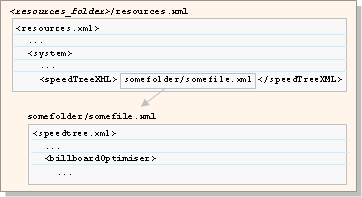

For details on how to tweak the texture atlas, see SpeedTree's XML configuration file, section billboardOptimizer. The name of SpeedTree's configuration file is specified in resources.xml, located in the game's resource folder, as illustrated below:

A good amount of variety without performance impact can be achieved by scaling and rotating instances of a single tree.
Interleaving instances with distinct trees also helps disguising repetition.
Beware, though, that some care must be taken when rotating trees if the they are expected to animate correctly under strong winds. For details, see Content Tools Reference Guide, chapter WorldEditor, section SpeedTree → Wind Animation

Lock Server; Working simultaneously on one space

The Lock Server (bwlockd) server allows world builders to work simultaneously within the same space without overwriting each others changes. It works by allowing users to lock regions of a space so that only they have editing access to it.

The Lock Server must be run on a machine that all world builders can connect to. The bwlockd.py python script is found here bigworld/tools/bwlockd.

To connect to a bwlockd server each user must configure their WorldEditor options.xml file to connect to the Lock Server.

	<bwlockd>
		<use>	true	</use>
		<host>	</host>
		<username>	</username>
	</bwlockd>

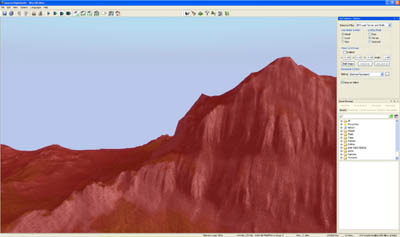

When a user first connects the entire space will be shaded red to indicate that the user cannot alter any of the assets.

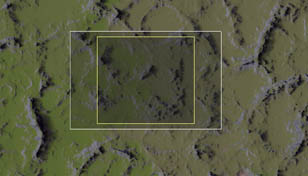

To lock off a region for editing select the project view button. This will give you an overhead representation of the space.

Marquee select the region you want to lock for editing.

Enter a commit message in the message box

Press Lock Selected Chunks, the Lock Server will consult the source control software you are using and ensure you have the latest version of the chunks before allowing you to edit them.

Once the chunks are locked they will appear the normal colour in the 3d viewport. You may now edit the space

Once you have finished editing you can either Discard Changes or Save and Commit your changes. Each button has the option to Keep Locks after the function, this will retain the lock on the area previously selected.

Remember that even if you exit WorldEditor the space remains locked so that only you can access it. Always unlock a region if others need to work there.
