Chapter 2. World Editor

For more details on how to perform common tasks in World Editor, see the document Content Creation Manual which can be accessed from inside the World Editor by pressing F1 or by selecting the Help → Content Creation menu item^[1].

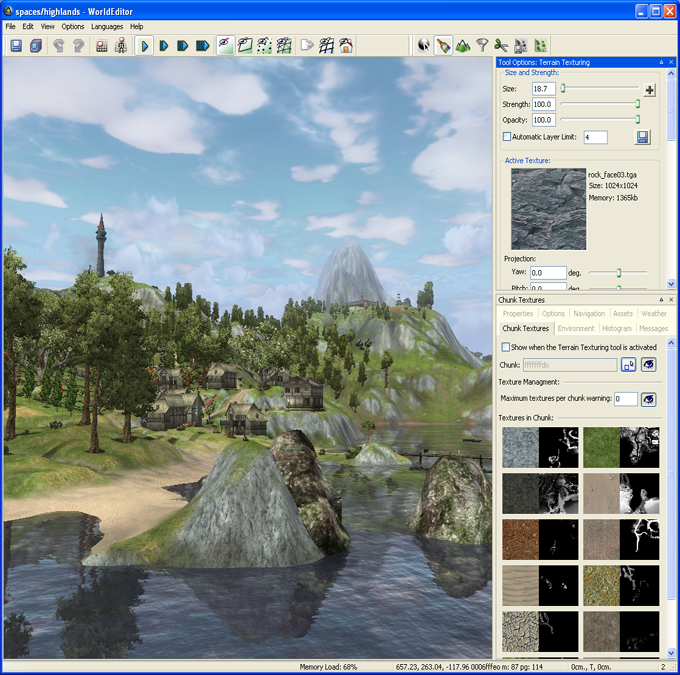

World Editor window

For details on how to start this and other BigWorld tools, see Starting the Tools.

2.1. Menu items

The list below describes the menu items available in World Editor:

File → New space^B

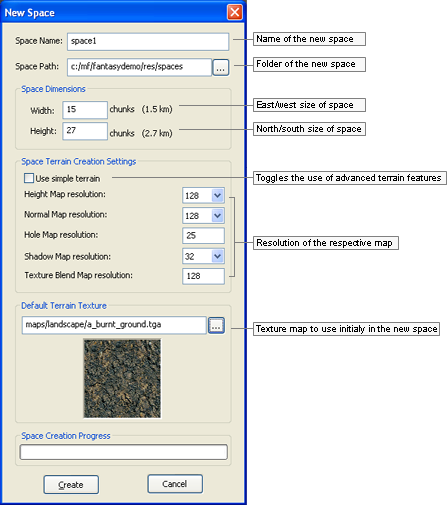

Opens the New Space dialog box, where the user can create a new space, specifying its name, path, size, and alternatively, advanced terrain features.

After creation, the space will be displayed in the viewport.

For details, see New Space dialog box.
File → Open space^B

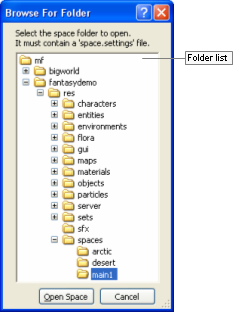

Opens the Browse For Folder dialog box, where the user can specify the space to be loaded.

For details, see Browse For Folder dialog box.
File → Reload all chunks^B

Reloads all chunks and associated data of the current space.
File → Reload all textures

Reloads all textures currently used by World Editor, to refresh textures changed by external applications.
File → Regenerate Terrain LODs

Reloads the terrain textures and applies them to all chunks in the space.
File → Regenerate Thumbnails

Regenerates thumbnails (as viewed in the Project View) for all chunks in the space.
File → Invalidate All Chunks

Invalidates all chunks in the space so that their secondary data (e.g. shadow maps or terrain LODs) need to be recalculated.
File → Save

Saves all modified terrain and chunk files, plus the project's space map, if it was changed — this operation can be stopped by pressing Esc^C.

Secondary data (such as terrain shadow information, static lighting data, and chunk thumbnails) that has already been calculated will also be saved, but no calculation is done. A list of chunks whose secondary data have been calculated will be stored in the space's space.cleanlist file.

The next time the File → Process Data menu item is selected, the necessary calculation will be performed on all chunks that are dirty.

Performs the same function as the Save toolbar button^A ().
File → Process data

Calculates derived data and saves all modified data — this operation can be stopped by pressing Esc^C.

While this process takes longer than a regular save, it makes the space ready with all information required to run the game.

Performs the same function as the Process All Data toolbar button^A ().
File → Convert to advanced terrain^B

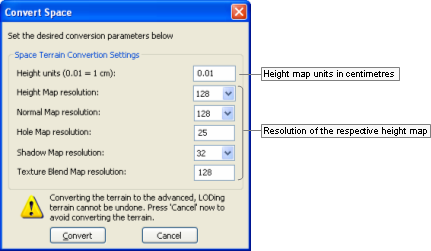

Opens the Convert Space dialog box, where the user can convert a simple terrain space to one with advanced terrain features.

For details, see Convert Space dialog box.
File → Resize terrain texture blends^B

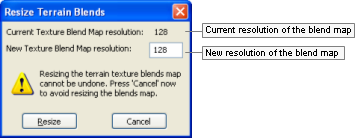

Opens the Resize Terrain Blends dialog box, where the user change the resolution of the texture layers blend map.

For details, see Resize Terrain Blends dialog box.
File → Recent spaces

Opens a sub-menu with a list of recent spaces.

For details, see Resize Terrain Blends dialog box.
File → Exit^B

Closes the application.
Edit → Undo

Undoes the most recent world-changing action.

Multiple actions can be undone. The undo list extends to the state of the world when World Editor was last started.

Each world-changing action that is undone is added to the redo list.

Performs the same function as the Undo toolbar button^A ().
Note

Only actions that effectively change the world are added to the undo list.
- Actions added to the undo list:
  Applying texture to terrain.

  Placing/deleting/moving/ rotating/scaling an object.

  Cutting a hole in terrain.
- Actions not added to the undo list:
  Changing the brush size and/or strength.

  Changing Object panel's Selection Filter.

  Changing camera height and/or angle.
Edit → Redo

Redoes the most recently undone world-changing action.

Multiple actions can be redone.

The redo list contains one entry for each undone world-changing action.

Performs the same function as the Redo toolbar button^A ().
Edit → Clear undo/redo history

Clears the undo list and the redo list.
Edit → Select all

Selects all objects in the space that match the current selection in Object panel's Selection Filter drop-down list box (for details on this drop-down list box, see Object panel).
Edit → Deselect all

Deselects all selected objects.
Edit → Save shell as template

Saves the selected shells as a template, adding the extension .template to the file name.

The template file will contain both chunk and lighting information.

If the user wants to also save models and/or shells, then save the selection as a prefab (via the Edit → Save Selection As Prefab menu item).
Edit → Save selection as prefab

Saves the current selection as a .prefab file, which can then later be used to place a copy of the items in the terrain.

Prefabs are elements such as objects, models, lights, shells, and items that can be saved in World Editor. They allow the artist to save a carefully arranged group of items to a single file, so that it can be used elsewhere within the world without having to arrange the objects a second time.

While a template can only contain lighting information, a prefab can contain also models and other objects.

The user may place existing prefabs by selecting the Asset Browser panel's Prefabs virtual folder. For details, see Asset Browser panel.
Edit → Hide Selection

Hide the selected items. The hidden state affects items in the editor only, it has no effect on the client or the server.
Edit → Unhide Selection

Unhide the selected items. To select hidden items, select them in the Scene Browser panel (see Scene Browser panel), or use the Hidden Objects selection filter in the Object panel (see Object panel).
Edit → Unhide All Selectable

Unhide all the hidden items in the space that are selectable according to the Selection Filter of the Object panel (see Object panel).
Edit → Unhide All

Unhide all the hidden items in the space.
Edit → Freeze Selection

Freeze the selected items. The frozen state affects items in the editor only, it has no effect on the client or the server.
Edit → Unfreeze Selection

Unfreeze the selected items. To select frozen items, select them in the Scene Browser panel (see Scene Browser panel), or use the Frozen Objects selection filter in the Object panel (see Object panel).
Edit → Unfreeze All Selectable

Unfreeze all the frozen items in the space that are selectable according to the Selection Filter of the Object panel (see Object panel).
Edit → Unfreeze All

Unfreeze all the frozen items in the space.
View → Toolbars → Main toolbar, View → Toolbars → Tools

Toggles the toolbar visibility.

For details on toolbars, see Toolbar.
View → Status bar

Toggles the status bar visibility.

For details on the status bar, seeStatus bar.
View → Show tool options panel^A

Toggles the visibility of the Tool Options panel, which displays the settings for the tool selected in the toolbar.

For details on each tool panel see:
- Object panel — See Object panel.
- Terrain Texturing panel — See Terrain Texturing panel.
- Terrain Height panel — See Terrain Height panel.
- Terrain Filtering panel — See Terrain Filtering panel.
- Terrain Mesh Cut/Repair panel — See Terrain Mesh Cut/Repair panel.

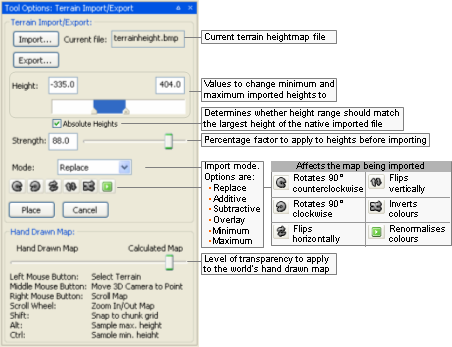

- Terrain Import/Export panel — See Terrain Import/Export panel.

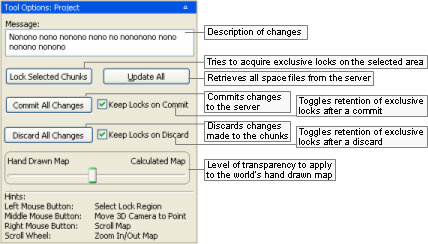

- Project panel — See Project panel.

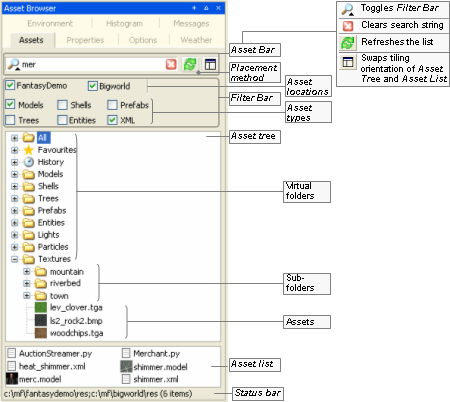

View → Show asset browser ^A

Displays/activates the panel (for details, see Asset Browser panel).

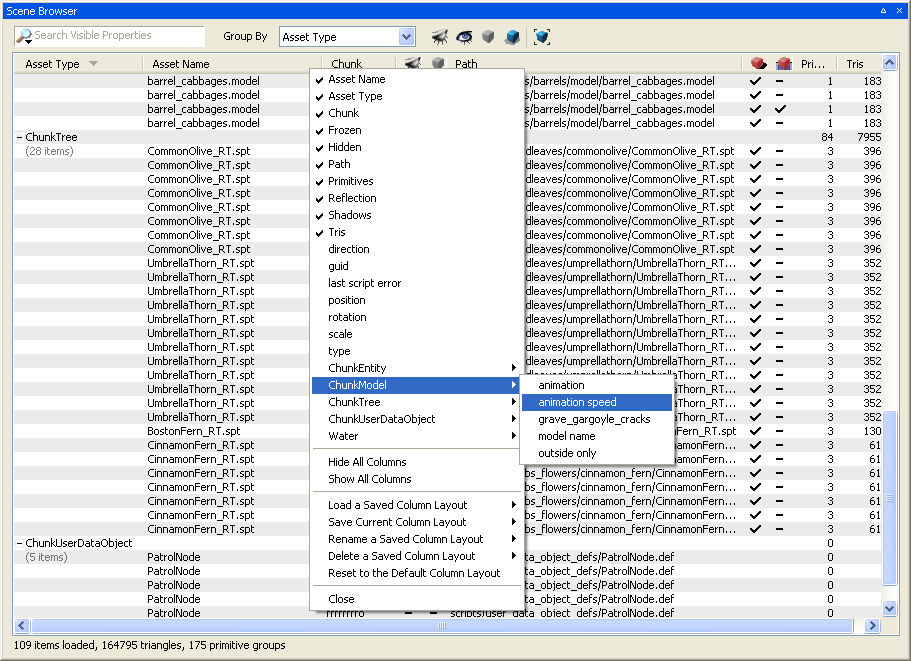

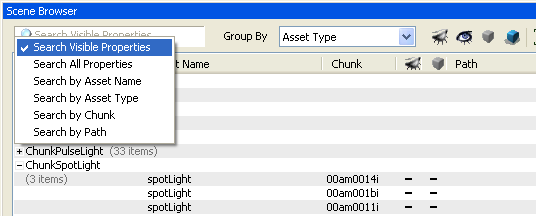

View → Show scene browser^A

Displays/activates the panel (for details, see Scene Browser panel).

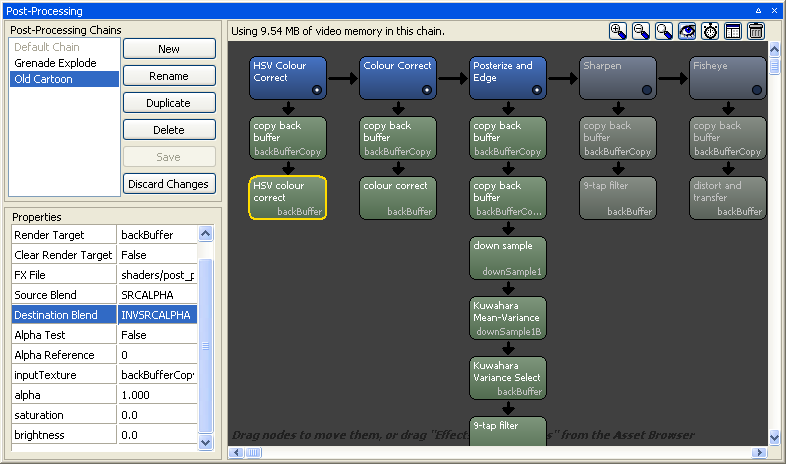

View → Show post processing panel ^A

Displays/activates the panel (for details, see Post-Processing panel).

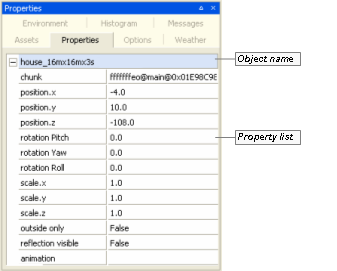

View → Show properties panel ^A

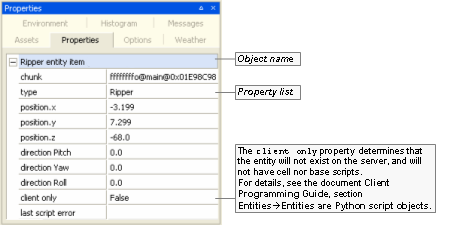

Displays/activates the panel (for details, see Properties panel).

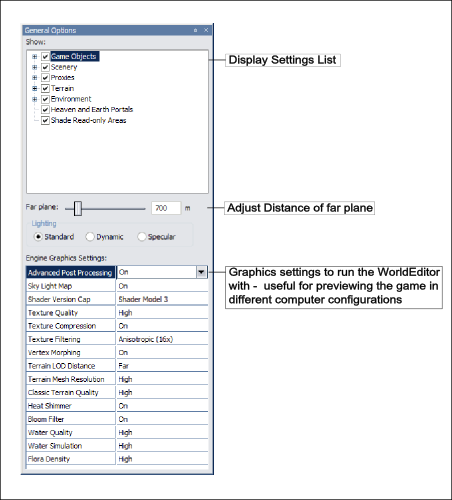

View → Show general options panel ^A

Displays/activates the panel (for details, see General Options panel).
View → Show navigation panel ^A

Displays/activates the panel (for details, see Navigation panel).

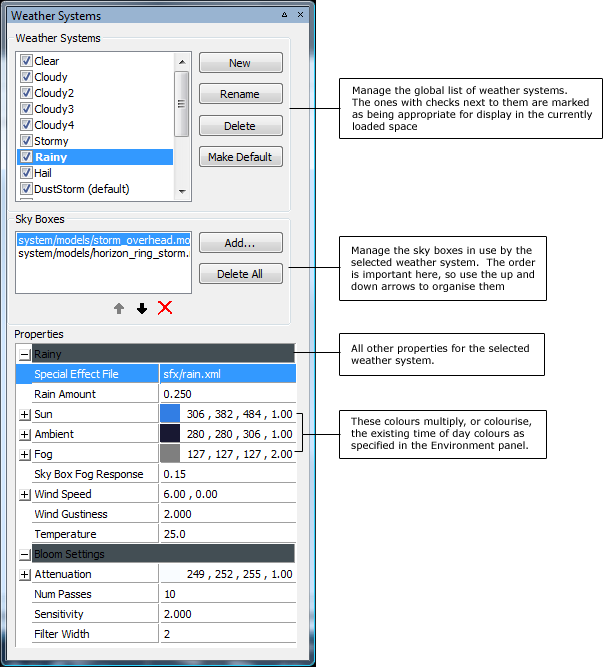

View → Show weather options panel ^A

Displays/activates the panel (for details, see Weather Preview panel).
View → Show environment options panel ^A

Displays/activates the panel (for details, see Environment Options panel).
View → Show histogram panel ^A

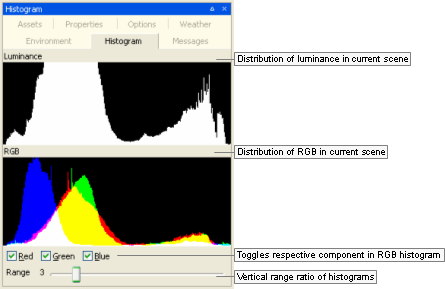

Displays/activates the panel (for details, see Histogram panel).
View → Show messages panel ^A

Displays/activates the panel (for details, see BigWorld Messages panel).
View → Show chunk textures panel ^A

Displays/activates the panel (for details, see Chunk Textures panel).
View → Show panels^A

Toggles the visibility of all panels.
View → Load default panel layout^A

Closes all customised panels, and displays World Editor's default panel.
View → Load most recent panel layout^A

Closes all current panels, and displays the customised panel layout previously used.
Options → Save camera position

Saves the current camera position to space.localsettings file.

The camera will be initialised with this position on the next session of World Editor.
Options → Save start position

Saves the current camera position to space.settings configuration file.

Your game can read this information as the starting point for the game character. Useful possibly only during development.
Options → Enable Umbra

Toggles Umbra occlusion culling
Options → Preview Default Weather When Opening a Space

If this option is enabled, then when you open a space in World Editor, the default weather selected for that space will automatically play. This is to enhance the WYSIWYG experience. If you find instead that this gets in your way while editing, you can turn this off. You can still select weather to preview in the Weather panel.
Languages → List of available languages

Selects the language to use in the tool.

This list is compiled based on the LanguageName tags present in the XML files in the <res>/helpers/languages folder and in the file pointed by the language tag in bigworld/tools/worldeditor/options.xml.
Help → About World Editor

Opens the World Editor About dialog box.
Help → Tools Reference Guide

Opens this document.
Help → Content creation

Opens the document Content Creation Manual.
Help → Shortcuts

Opens the Keyboard Shortcuts dialog box.

For details on this dialog box, see WorldEditor Shortcuts dialog box.
Help → Request feature/report bug

Opens your e-mail program, with To: field automatically set to BigWorld's support e-mail address, and Subject: set to World Editor - Feature Request / Bug Report.

A — For details on the panel system and its terminology, see Panel System.

B — If there were changes to the world, user will be prompted to choose between saving the changes before proceeding, processing changes then saving before proceeding, proceeding without saving changes, or cancelling the operation. For details, see Changed Files dialog box.

C — For details, see Keyboard shortcuts.

2.2. Toolbar

The list below describes the toolbar buttons available in World Editor:

— Save

Saves the data, without recalculating shadow/lighting/thumbnail information.

Performs the same function as the File → Save menu item.^A
— Process all data

Recalculates shadow/lighting/thumbnail information, then saves them.

Performs the same function as the File → Process Data menu item.^A
— Undo

Undoes the most recent action.

Performs the same function as Edit → Undo menu item.^A
— Redo

Redoes the most recent undone action.

Performs the same function as Edit → Redo menu item.^A
— Orthographic view

Sets the camera to top-down view.

In this mode, the mouse and keys will move along the x- and z- axes (where the y-axis is considered up when standing on the terrain).

For details on camera movement while in this mode, see Mouse controls.
— Player preview mode

Toggles the player walkthrough mode, in which the camera moves in the world as if attached to the player.

The height of the camera on this mode is specified by the Navigation panel's Camera Height field (for details, see Navigation panel).

This button performs the same function as the Navigation panel's Player Preview Mode check box.

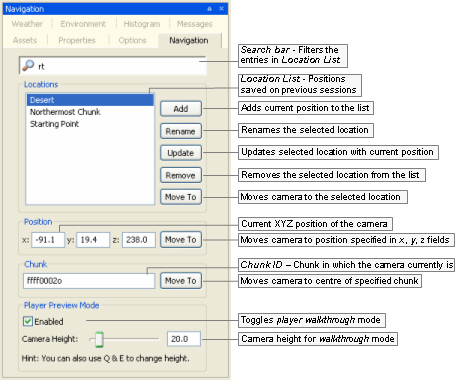

Navigation panel
— Slow, — Medium speed, — Fast, — Super

Specifies how fast the camera travels in response to appropriate key events (keys Q, W, E, A, S, and D).^C

If Caps Lock is on, then the camera speed will be boosted.

Camera speed can also be set to Slow, Medium, Fast and Super Fast by the keyboard shortcuts Ctrl+1, Ctrl+2, Ctrl+3, and Ctrl+4, respectively.
— Normal, — Chunk borders, — Pole markers, — Wireframe

Toggles between the various chunk visualisation modes.

For details, see Chunk visualisation modes.
— Edit in external editor

Opens the current selected item in an external editor.

After saving the item in the editor, World Editor will automatically reload it to reveal the changes.

Currently, we only support particle systems (edited in Particle Editor) and models (edited in Model Editor).
— Draw terrain as wireframe

Draws the terrain mesh as wireframe.

Performs the same function as the General Options panel's, Show list box's, Terrain → Wireframe item (for details on this panel, see General Options panel).
— Hide/show outside objects

Toggles the visibility of all outside objects.
— Hide/show navigation mesh

Toggles the visibility of the navigation mesh.
— Object tool^B

Activates the Object mode — for details, see Object panel. This mode is also activated by pressing 1^C.
— Terrain texture tool^B

Activates the Terrain texture mode — for details, see Terrain Texturing panel. This mode is also activated by pressing 2^C.
— Terrain height tool^B

Activates the Terrain height mode — for details, see Terrain Height panel. This mode is also activated by pressing 3^C.
— Terrain filter tool^B

Activates the Terrain filter mode — for details, see Terrain Filtering panel. This mode is also activated by pressing 4^C.
— Terrain mesh cut/repair tool^B

Activates the Terrain mesh cut/repair mode — for details, see Terrain Mesh Cut/Repair panel. This mode is also activated by pressing 5^C.
— Terrain import/ export tool^B

Activates the Terrain import/export mode — for details, see Terrain Import/Export panel. This mode is also activated by pressing 6^C.
— Project tool^B

Activates the Project mode — for details, see Project panel. This mode is also activated by pressing 7^C.

A — For details, see Menu items.

B — It also displays/activates the tool's panel. For details on panels, see Panel System.

C — For details, see Keyboard shortcuts.

2.3. Status bar

The status bar displays information about the current world, display settings, and mouse positioning.

A typical status bar is illustrated below:

World Editor status bar

The list below describes the pieces of information displayed in the status bar, as they appear:

Memory Load (in the example, 25%)

System memory load.
Mouse pointer position (in the example, -227.00, 179.70, -15.30)

Position of the mouse pointer, in world coordinates.
Chunk identification (in the example, fffdffffo)

ID of the chunk over which the mouse is located.
Models in chunk (in the example, m:14)

Number of models in the chunk over which the mouse is located.
Primitive groups in chunk (in the example, pg: 20)

Number of primitive groups in chunk over which the mouse is located.
Current snap mode (in the example, free)

Displays the current method for snapping objects in the world. This is specified in the Object panel's Object Grid Snaps group box (for details, see Object panel.).
Triangles rendered (in the example, 1016587 tris.)

Number of triangles currently being rendered in the scene.
Frame rate (in the example, 13.3 fps.)

Frame rate used to display the scene.
Loaded chunks (in the example, 684 chunks loaded)

Number of loaded chunks.

By default, the Chunk Manager only loads the chunks in the area around the camera, up to the far plane (configured in the General Options panel's Far Plane field — for details, see General Options panel).
Dirty chunk information (in the example, (Navmesh: 682 Shadow:474 Thumbnail: 476))

Information about number and type of dirty chunks.

This lists the number of chunks which have dirty generated data of various types. Currently these types are:
- Lighting: Pre-generated vertex lighting data for fixed objects, indoors and optionally outdoors.
- NavMesh: Navigation mesh data generated by Offline Processor or NavGen.
- Shadow: Terrain horizon shadow maps.
- TerrainLod: Terrain LOD texture used for geo-mipmapping.
- Thumbnail: Overhead snapshot thumbnail of the chunk, generated and used in the Project View of World Editor.

2.4. Gizmos

World Editor provides both context-sensitive gizmos and keyboard-activated gizmos that allow the configuration of world items. They are described in the sections below.

2.4.1. Movement gizmo

Displayed by default on all world items and represented by red-green-blue axes (or red-green axis if the Object panel's Locking Mode groups box's Terrain option button is selected) ending in a arrow, this gizmo allows the item to be repositioned in the world.

Please note that if the Objects panel's Drag On Select check box is selected, then items can be moved by simply dragging them.

Movement gizmo (Free and Obstacle modes)

Movement gizmo (Terrain mode)

2.4.2. User data object linking gizmo

Displayed automatically when a user data object with one or more UDO_REF properties is selected. This gizmo contains two circles, which when dragged and dropped on top of another user data object creates a link between the two, and, if the user data object editor script implements it, two crosses that when dragged allow cloning the user data object.

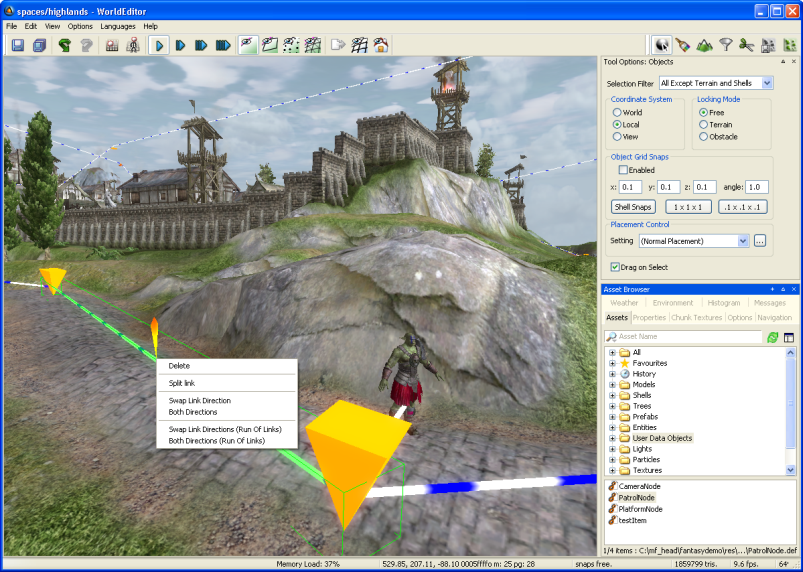

For details on using this gizmo, see Patrol path editing with User Data Objects.

User data object linking gizmo

2.4.3. Entity linking gizmo

Displays automatically when an entity that contains one or more UDO_REF properties is selected. This gizmo is composed of two circles that can be dragged to a user data object to establish link to it, from the entity.

For details on how to configure an entity to support linking to user data objects and how to use this gizmo, see Patrol path editing with User Data Objects.

Entity linking gizmo

2.4.4. Rotation gizmo

Activated by the Shift keyboard shortcut and represented by red-green-blue circles, this gizmo allows the item to be rotated in all directions.

Rotation gizmo

Note

Spot lights have an additional yellow circle that allows the user to change the cone angle property.

Rotation gizmo for spot lights

2.4.5. Scale gizmo

Activated by the Alt keyboard shortcut and represented by red-green-blue axes ending in a square (for regular scale gizmo) and a white circle (for uniform scale gizmo), this gizmo allows the item to be scaled.

Dragging one of the squares at the end of an axis rescales the item only in that dimension. Dragging the white circle inwards or outwards uniformly shrinks or enlarges the item, respectively.

Scale gizmo

Note

Lights have a different scale gizmo, with a green circle representing the inner radius and a blue circle representing the outer radius.

Spot lights have an additional yellow circle that allows the user to change the cone angle property.

Scale gizmo for lights

Scale gizmo for spot lights

2.4.6. Texture projection/scale gizmo

Activated by pressing Shift while the Terrain Texture toolbar button^A —— is selected or by clicking the Terrain Texturing panel's button^B, this gizmo contains the following elements (each updating a different field in the panel):

Projection gizmo (composed of red, green, and blue circles).
- Red circle — updates the Roll field.
- Green circle — updates the Pitch field.
- Blue circle — updates the Yaw field.
Scale gizmo (composed of red and green cubes and a red- and green-sided rectangle or grid).
- Red cube — updates the V field.
- Green cube — updates the U field.

A — For details, see Toolbar.

B — For details, see Terrain Texturing panel.

Texture projection/scale gizmo

2.5. Keyboard shortcuts

The list of World Editor's keyboard shortcuts can be displayed via the Help → Shortcuts menu item (for details, see Menu items).

The sections below list the World Editor's keyboard shortcuts.

2.5.1. Function keys

F1

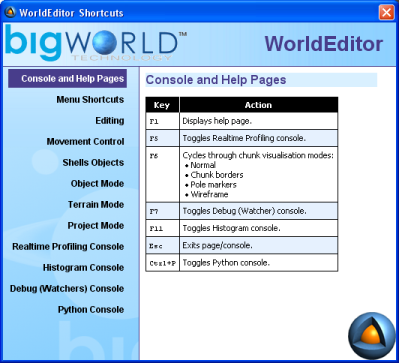

Displays the World Editor Shortcuts page, which can be left by pressing Esc.
F4

Cycles through object locking modes:
- Free
- Terrain
- Obstacle
Performs the same function as the Object panel's Locking Mode group box^A.

Object panel's Locking Mode group box
Ctrl+F5

Activates the Realtime Profiling console, which can be left by pressing Esc (for details, see Realtime Profiling console).
F6

Cycles through the chunk visualisation modes:
- Normal — same as the toolbar button.
- Chunk borders — same as the toolbar button.
- Pole markers — same as the toolbar button.
- Wireframe — same as the toolbar button.
Performs the same function as the Chunk Visualisation toolbar buttons (for details, see Toolbar).

For details, see Chunk visualisation modes.
Ctrl+F7

Activates the Debug (Watcher) console, which can be left by pressing Esc (for details, see Debug (Watcher) console).
F8

Cycles through coordinate systems:
- World
- Local
- View
Performs the same function as the Object panel's Coordinate System group box^A.

Object panel's Coordinate System group box
F9
- If Terrain Texture Tool^B —— is selected

  Recalculates detail objects, such as flora, based on the texture predominant in the terrain.

  For more details on flora calculation, see the document Content Creation Manual's lesson Create and Use Flora (the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items).
F11

Activates the Histogram console, which can be left by pressing Esc (for details on this console, see Histogram console).

A — For details, see Object panel.

B — For details, see Terrain Texturing panel, and Toolbar.

2.5.2. Key modifiers

Alt
- If at least one object is selected
  - If the mouse is being dragged (using the left button)

    Deselects the items delimited by the area over which the mouse is dragged.
  - Otherwise

    While pressed, the key activates the scale gizmos (NOTE: the key does not toggle a scale mode).

    The uniform scale gizmo is represented by a circle, and causes the object to have all its dimensions uniformly resized. The regular scale gizmo is represented by the usual red-green-blue axis gizmo, and causes the object to be rescaled only on the selected dimension.

    For lights, the scale gizmo for inner radius (represented by a green circle) and outer radius (represented by a blue circle) are activated. For spot lights, the gizmo for the property cone angle (represented by a yellow area inside the gizmo for inner radius) is also activated.

    The selected object can then be shrunk or enlarged, up to a maximum size of 100 metres.

    The scale gizmos use the Object panel's Coordinate system and Locking Mode group boxes to determine which axis to scale on and whether to snap the objects while scaling (for details, see Object panel).
- If Terrain Texture Tool toolbar button^C —— is selected

  Activates the texture sampler tool (indicated by the cursor icon), which samples the dominant texture of the chunk under the cursor — the Terrain Texturing panel's Active Texture field^C will be updated accordingly.
- If Terrain Texture Height toolbar button^E —— is selected

  Activates the height picker tool (indicated by the cursor icon), which samples the height underneath the cursor and assigns it to the Terrain Height panel's Explicit Height field (for details, see Terrain Height panel).
- If Terrain Import/Export toolbar button^D —— is selected

  Activates the height picker tool (indicated by the cursor icon), which samples the maximum height of the region selected by dragging the mouse and assigns it to the Terrain Import/Export panel's Maximum Height field (for details, see Terrain Import/Export panel).
- If Debug (Watcher) console^B is active
  - If [0-9] key in the alphanumeric keypad is pressed:

    Selects item 40+[0-9], or 50+[0-9] (if Shift is pressed).
Alt+Ctrl
- If Terrain Texture Tool toolbar button^C —— is selected

  Activates the texture/opacity sampler tool (indicated by the cursor icon), which samples the dominant texture of the chunk under the cursor and its opacity — the Terrain Texturing panel's Active Texture and Opacity fields^C will be updated accordingly.
Alt+Shift
- If Terrain Texture Tool toolbar button^C —— is selected

  Activates the texture projection tool (indicated by the cursor icon — a red- and green-sided square indicates the clicked area), which adjusts the Terrain Texturing panel's Projection fields^C to the values of that of the terrain under the cursor.
- If Debug (Watcher) console^B is active
  - If [0-9] key in the alphanumeric keypad is pressed:

    Selects item 50+[0-9].
Alt+Page Down
- If Debug (Watcher) console^B is active

  If the watcher is in Edit mode, then decreases the watcher's value by 1,000.
Alt+Page Up
- If Debug (Watcher) console^B is active

  If the watcher is in Edit mode, then increases the watcher's value by 1,000.
Ctrl
- If at least one object is selected

  While pressed, the key enables the selection of multiple objects (NOTE: the key does not toggle an additive selection mode).
  - If used in conjunction with the mouse scroll wheel

    Rotates the selected shells according to the snapped portals.
- If Debug (Watcher) console^B is active
  - If [0-9] key in the alphanumeric keypad is pressed:

    Selects item 20+[0-9], or 30+[0-9] (if Shift is pressed).
- If Terrain Height Tool toolbar button^E —— is selected

  Note: This is only valid if the left Ctrl key is pressed.

  Activates the explicit height brush (indicated by a green square), which immediately sets the terrain height to the value specified in the Explicit Height field (if the Absolute option button is selected), or immediately increases the terrain height by the value specified in the Explicit Height field (if the Relative option button is selected).

  For details on absolute and relative explicit height modes, see Terrain Height panel.
- If Terrain Import/Export toolbar button^D —— is selected

  Activates the height picker tool (indicated by the cursor icon), which samples the minimum height of the region selected by dragging the mouse and assigns it to the Terrain Import/Export panel's Minimum Height field.
Ctrl+Alt

See the entry Alt+Ctrl in this list.
Ctrl+Shift
- If Debug (Watcher) console^B is active
  - If [0-9] key in the alphanumeric keypad is pressed:

    Selects item 30+[0-9].
Ctrl+Page Down
- If Debug (Watcher) console^B is active

  If the watcher is in Edit mode, then decreases the watcher's value by 100.
Ctrl+Page Up
- If Debug (Watcher) console^B is active

  If the watcher is in Edit mode, then increases the watcher's value by 100.
Shift
- If at least one object is selected

  While pressed, the key activates the rotation gizmo (NOTE: the key does not toggle a rotation mode).

  The rotation gizmo uses the Object panel's Coordinate system and Locking Mode group boxes to determine which axis to rotate around and whether to snap the objects while rotating (for details, see Object panel).
- If Terrain Texture Tool toolbar button^C —— is selected

  Activates the texture projection/scale gizmo (for details, see Terrain Texturing gizmos). The gizmo can also be activated by clicking the button on top of the Terrain Texturing panel^C.
- If Terrain Import/Export toolbar button^D —— is selected

  Locks the selected region being dragged to chunk boundaries.
- If Debug (Watcher) console^B is active
  - If [0-9] key in the alphanumeric keypad is pressed:

    Selects item 10+[0-9], 30+[0-9] (if Ctrl is pressed), or 50+[0-9] (if Alt is pressed).
Shift+Enter
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Displays the watcher modification history.
Shift+Alt

See the entry Alt+Shift in this list.
Shift+Page Down
- If Debug (Watcher) console^B is active

  If the watcher is in Edit mode, then decreases the watcher's value by 100.
Shift+Page Up
- If Debug (Watcher) console^B is active

  If the watcher is in Edit mode, then increases the watcher's value by 100.

A — For details, see Toolbar.

B — Activated by F7 (for details on the Python console, see Python console).

C — For details, see Terrain Texturing panel.

D — For details, see Terrain Import/Export panel.

E — For details, see Terrain Height panel.

2.5.3. Edit keys

Backspace
- If Debug (Watcher) console^C is active

  Returns the list to the previous branch of the watcher tree.
Caps Lock
- ON

  Increases the current camera speed. It accelerates the camera movement, which speed is set by keyboard shortcuts (Ctrl+1, Ctrl+2, Ctrl+3, and Ctrl+4), or by the Camera Speed toolbar buttons (,,, and ).
- OFF

  Restores camera to the speed set by keyboard shortcuts or by the Camera Speed toolbar buttons^A.
Delete

Deletes the selected objects.
Enter
- If Object Tool toolbar button^B —— is selected

  Places the selected object under the mouse cursor.
- If Python console^E

  Executes the Python command, or exits the console if no command was specified.
- If Realtime Profiling console^D is active

  Expands or collapses the profiling element currently selected — elements with children are indicated by an ellipsis (…) next to it.
- If Debug (Watcher) console^C is active
  - If the selected node is not a leaf

    Navigates one level down in the watcher tree.
  - If the selected node is a leaf

    Opens the selected watcher for editing, or accepts the typed value if it is already in Edit mode.
  - If watcher is in Editor mode and Shift is pressed

    Displays the watcher modification history.
Esc

Deselects the selected objects.
- If the File → Save or File → Process Data menu item has been selected, and is still saving/processing

  Cancels the operation (for details, see Menu items).
- If any console is active

  Exits the console.

  NOTE: The different modes and consoles are activated in the following way:
  - Help mode — F1
  - Realtime profiling console — F5 (for details, see Realtime Profiling console)
  - Debug (Watchers) console — F7 (for details, see Debug (Watcher) console)
  - Histogram console — F11 (for details, see Histogram console)
  - Python console — Ctrl+P (for details, see Python console)
- If Debug (Watcher) console^C is active
  - If the watcher is in Edit mode

    Leaves Edit mode.
  - If the watcher is not in Edit mode

    Exits the console.
Home
- If Realtime Profiling console^D is active

  Scrolls the list to display the first page.
- If Debug (Watcher) console^C is active

  Returns the list to the root of the watcher tree.
Page Down
- If Realtime Profiling console^D is active

  Moves the selection to the next element in the list.

  Performs the same function as the ] (square right bracket) keyboard shortcut.
- If Debug (Watcher) console^C is active
  - If the watcher is not in Edit mode

    Moves the selection to the next item in the list.
  - If the watcher is in Edit mode

    Decreases the watcher's value by 1, 10 (if Shift is pressed), 100 (if Ctrl is pressed), or 1,000 (if Alt is pressed).
Page Up
- If Realtime Profiling console^D is active

  Moves the selection to the previous element in the list.

  Performs the same function as the [ (square left bracket) keyboard shortcut.
- If Debug (Watcher) console^C is active
  - If the watcher is not in Edit mode

    Moves the selection to the previous item in the list.
  - If the watcher is in Edit mode

    Increases the watcher's value by 1, 10 (if Shift is pressed), 100 (if Ctrl is pressed), or 1,000 (if Alt is pressed).

A — For details, see Toolbar.

B — For details, see Object panel, and Toolbar.

C — Activated by F7 (for details, see Debug (Watcher) console).

D — Activated by F5 (for details, see Realtime Profiling console).

E — Activated by Ctrl+P (for details, see Python console).

2.5.4. Symbols

Numpad + (Plus sign)
- If Realtime Profiling console^A is active

  Scrolls the screen one line down.
- If Debug (Watcher) console^B is active

  Scrolls the watcher list down.
, (Comma)
- If Terrain Filter Tool toolbar button^C —— is selected

  Selects the previous item in the Filters list box.
Numpad - (Minus sign)
- If Realtime Profiling console^A is active

  Scrolls the screen one line up.
- If Debug (Watcher) console^B is active

  Scrolls the watcher list up.
. (Period)
- If Terrain Filter Tool toolbar button^C —— is selected

  Selects the next item in the Filters list box.
[ (Left square bracket)
- If Terrain Texture Tool^D ——, Terrain Height Tool^E ——, Terrain Filter Tool^C ——, or Terrain Mesh Tool^F —— toolbar button is selected

  Decreases the brush size.^G
- If Realtime Profiling console^A is active

  Moves the selection to the profiling element in the list.

  Performs the same function as the Page Up keyboard shortcut.^I
] (Right square bracket)
- If Terrain Texture Tool^D ——, Terrain Height Tool^E ——, Terrain Filter Tool^C ——, or Terrain Mesh Tool^F —— toolbar button is selected

  Increases the brush size.^G
- If Realtime Profiling console^A is active

  Moves the selection to the next element in the list.

  Performs the same function as the Page Down keyboard shortcut^I.
{ (Left curly bracket)
- If Terrain Texture Tool^D ——, Terrain Height Tool^E ——, Terrain Filter Tool^C ——, or Terrain Mesh Tool^F —— toolbar button is selected

  Decreases the brush strength.^G
} (Right curly bracket)
- If Terrain Texture Tool^D ——, Terrain Height Tool^E ——, Terrain Filter Tool^C ——, or Terrain Mesh Tool^F —— toolbar button is selected

  Increases the brush strength.^G
~ (Tilde)

Toggles the player walkthrough mode.

This mode can also be toggled by the Player Preview Mode toolbar button^H ——, or by the Navigation panel's Player Preview Mode group box's Enabled check box.^I

A — Activated by F5 (for details, see Realtime Profiling console).

B — Activated by F7 (for details, see Debug (Watcher) console).

C — For details, see Terrain Filtering panel, and Toolbar.

D — For details, see Terrain Texturing panel, and Toolbar.

E — For details, see Terrain Height panel, and Toolbar.

F — For details, see Terrain Mesh Cut/Repair panel, and Toolbar.

G — The mouse pointer must be located somewhere in the viewport for the shortcut to have effect.

H — For details, see Toolbar.

I — For details, see Navigation panel.

2.5.5. Numeric keys

Alphanumeric keypad
- 1

  Activates the Object mode — for details, see Object panel. This mode is also activated by the toolbar button^D.
- 2

  Activates the Terrain texture mode — for details, see Terrain Texturing panel. This mode is also activated by the toolbar button^D.
- 3

  Activates the Terrain height mode — for details, see Terrain Height panel. This mode is also activated by the toolbar button^D.
- 4

  Activates the Terrain filter mode — for details, see Terrain Filtering panel. This mode is also activated by the toolbar button^D.
- 5

  Activates the Terrain mesh cut/repair mode — for details, see Terrain Mesh Cut/Repair panel. This mode is also activated by the toolbar button^D.
- 6

  Activates the Terrain import/export mode — for details, see Terrain Import/Export panel. This mode is also activated by the toolbar button^D.
- 7

  Activates the Project mode — for details, see Project panel. This mode is also activated by the toolbar button^D.
- If Debug (Watcher) console^B is active

  Depending on the key modifier pressed (if any), selects the following item (n is the pressed key):
  - n
  - 10+n (if Shift is pressed)
  - 20+n (if Ctrl is pressed)
  - 30+n (if Ctrl+Shift is pressed)
  - 40+n (if Alt is pressed)
  - 50+n (if Alt+Shift is pressed)
Numeric keypad
- 0
  - If Histogram console^A is active

    Toggles the graphing of luminance.
- 1
  - If Histogram console^A is active

    Toggles the graphing of the red component in the RGB histogram.
- 2
  - If Histogram console^A is active

    Toggles the graphing of the green component in the RGB histogram.
- 3
  - If Histogram console^A is active

    Toggles the graphing of the blue component in the RGB histogram.
- 4
  - If Histogram console^A is active

    Toggles the rendering of the scene background on the histograms.
- 5
  - If Histogram console^A is active

    Decreases the vertical range ratio of the Luminance and RGB histograms.
- 6
  - If Histogram console^A is active

    Increases the vertical range ratio of the Luminance and RGB histograms.

A — Activated by F11 (for details, see Histogram console).

B — Activated by F7 (for details, see Debug (Watcher) console).

C — For details, see Terrain Texturing panel, and Toolbar.

D — For details, see Toolbar.

2.5.6. Alphabetic keys

A

Moves the camera to the left.
B

Toggles the drawing of object's BSPs.

This value can also be set by the General Options panel's, Show list box's, Scenery → BSP item^A.
C

Clones selected objects.
D

Moves the camera to the right.
E

Moves the camera upwards.
- If Navigation panel is active
  - If the Player Preview Mode group box's Enabled check box is selected

    Increases the value of the Player Preview Mode group box's Camera Height field.
G
- If Object panel^C is active

  Toggles the snapping of objects to the grid specified in the Object panel.

  This value is also set by the Object panel's Object Grid Snaps group box's Enabled check box.
- If Realtime Profiling console^B is active

  Draws a graph for the profiling element currently selected.

  More than one element can be graphed at any one time. Each one will be assigned a different colour, which will be used to display the element's name, and draw the graph itself.
J

Grants control to the joystick
K

Grants control to the keyboard.
M

Toggles the drag-on-select mode.

This value is also set by the Object panel's Drag On Select check box^C.
Q

Moves the camera downwards.
- If the Navigation panel^D is active
  - If the Player Preview Mode group box's Enabled check box is selected

    Decreases the value of the Player Preview Mode group box's Camera Height field.
S

Moves the camera backwards.
V
- If a shell is selected

  While pressed, causes the mouse middle button click to copy selected shell, and links both by a matching portal.

  Note: V must be pressed before and during the middle mouse button click.
W

Moves the camera forward.

A — For details, see General Options panel.

B — Activated by F5 (for details, see Realtime Profiling console).

C — For details, see Object panel.

D — For details, see Navigation panel.

2.5.7. Key combinations

Alt+F4

Accesses the File → Exit menu item.^C
Alt+Page Down
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Decreases the watcher's value by 1,000.
Alt+Page Up
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Increases the watcher's value by 1,000.
Alt+[0-9]
- If Debug (Watcher) console^B is active and used alphanumeric keypad

  Selects list item 4[0-9].
Alt+Ctrl
- If Terrain Texture Tool toolbar button^A —— is selected

  Activates the texture/opacity sampler tool (indicated by the cursor icon), which samples the dominant texture of the chunk under the cursor and its opacity — the Terrain Texturing panel's Active Texture and Opacity fields^C will be updated accordingly.
Alt+Ctrl+S

Accesses the File → Process Data menu item.^C
Alt+Shift
- If Terrain Texture Tool toolbar button^A —— is selected

  Activates the texture projection tool (indicated by the cursor icon — a red- and green-sided square indicates the clicked area), which adjusts the Terrain Texturing panel's Projection fields^C to that of the terrain under the cursor.
Alt+Shift+[0-9]
- If Debug (Watcher) console^B is active and used alphanumeric keypad

  Selects list item 5[0-9].
Ctrl+Alt

See the entry Alt+Ctrl in this list.
Ctrl+Alt+S

See the entry Alt+Ctrl+S in this list.
Ctrl+Page Down
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Decreases the watcher's value by 100.
Ctrl+Page Up
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Increases the watcher's value by 100.
Ctrl+[0-9]

Ctrl+1 turns the Slow Camera toolbar button^A —— on.

Ctrl+2 turns the Medium Speed Camera toolbar button^A —— on.

Ctrl+3 turns the Fast Camera toolbar button^A —— on.

Ctrl+4 turn the Super Fast Camera toolbar button^A —— on.
- If Debug (Watcher) console^B is active and used alphanumeric keypad

  Selects item 2[0-9].
Ctrl+Shift+[0-9]
- If Debug (Watcher) console^B is active and used alphanumeric keypad

  Selects item 3[0-9].
Ctrl+A

Accesses the Edit → Select All menu item.^C
Ctrl+B

Accesses the Edit → Save Selection As Prefab menu item.^C
Ctrl+D

Accesses the Edit → Deselect All menu item.^C
Ctrl+H

Accesses the View → Show Panels menu item.^C
Ctrl+I

Cycles through the available camera speeds.

This value can also be set by the Camera Speed group of toolbar buttons — ,,,.
Ctrl+K

Accesses the File → Reload All Chunks menu item.^C
Ctrl+P

Activates the Python console, which can be left by pressing Esc. For details, see Python console.
Ctrl+R

Accesses the File → Reload All Textures menu item.^C
Ctrl+S

Accesses the File → Save menu item.^C
Ctrl+T

Accesses the Edit → Save Shell As Template menu item.^C
Ctrl+Y

Accesses the Edit → Redo menu item.^C
Ctrl+Z

Accesses the Edit → Undo menu item.^C

Note: The mouse cursor must be over the viewport for shortcut to be enabled.
Shift+Alt

See the entry Alt+Shift in this list.
Shift+Alt+[0-9]

See the entry Alt+Shift+[0-9] in this list.
Shift+Ctrl+[0-9]

See the entry Ctrl+Shift+[0-9] in this list.
Shift+Enter
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Displays the watcher modification history.
Shift+Page Down
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Decreases the watcher's value by 1.
Shift+Page Up
- If Debug (Watcher) console^B is active and watcher is in edit mode

  Increases the watcher's value by 1.
Shift+[
- If Terrain Texture Tool toolbar button^D —— is selected

  Decreases the brush strength.
Shift+]
- If Terrain Texture Tool toolbar button^D —— is selected

  Increases the brush strength.
Shift+F4

Captures a copy of the current scene to bigworld/tools/worldeditor/shot<nnnn>.bmp, where <nnnn> is a sequential number.

For details, see the document Client Programming Guide's section 3D Engine (Moo) → Taking Screenshots.

A — For details, see Toolbar.

B — Activated by F7 (for details, see Debug (Watcher) console).

C — For details, see Menu items.

D — For details, see Terrain Texturing panel, and Toolbar.

2.6. Mouse controls

The list below describes the World Editor's mouse controls:

Left button click
- If Object Tool toolbar button^B —— is selected

  If button was clicked on a selectable object, then select the object.

  Selected objects are indicated by white corners on their bounding boxes. Selectable objects are indicated by rendering their bounding boxes in green when the mouse hovers over them — the objects that can be currently selected are specified by the Object panel's Selection Filter drop-down list box^B. Objects that could not be loaded are indicated by a red box, and with a message in the BigWorld Messages panel^J.
- If Terrain Texture Tool toolbar button^C —— is selected
  - If Alt is pressed

    Samples the dominant texture of the chunk under the cursor — the Terrain Texturing panel's Active Texture field^C will be updated accordingly.

    Alt^H activates the texture sampler tool (indicated by the cursor icon).
  - If Alt+Ctrl^H is pressed

    Samples the dominant texture of the chunk under the cursor and its opacity — the Terrain Texturing panel's Active Texture and Opacity fields^C will be updated accordingly.

    Alt+Ctrl activates the texture/opacity sampler tool (indicated by the cursor icon).
  - If Alt+Shift^H is pressed

    Adjusts the Terrain Texturing panel's Projection fields^C to that of the terrain under the cursor.

    Alt+Shift activates the texture projection tool (indicated by the cursor icon — a red- and green-sided square indicates the clicked area).
- If Terrain Height Tool toolbar button^D —— is selected
  - If Alt^H is pressed

    Samples the height of the terrain under the cursor

    Alt activates the height picker tool (indicated by the cursor icon), which samples the height underneath the cursor and assigns it to the Terrain Height panel's Explicit Height field^D.
Left button drag
- If Object Tool toolbar button^B —— is selected
  - If button was clicked on a selectable object

    Selected objects are indicated by white corners on their bounding boxes. Selectable objects are indicated by rendering their bounding boxes in green when the mouse hovers over them — the objects that can be currently selected are specified by the Object panel's Selection Filter drop-down list box^B. Objects that could not be loaded are indicated by a red box, and with a message in the BigWorld Messages panel^J.

    If Object Tool panel's Drag On Select check box is selected

    Draws a rectangle inside which all objects matching the current selection in the Selection Filter drop-down list box will be selected.

    If Object Tool panel's Drag On Select check box is cleared

    Moves the selected objects in the direction of the drag. Dragging the mouse up and down will move the objects upwards and downwards, respectively.
  - If button was NOT clicked on a selectable object

    Draws a rectangle inside which all objects with a type that matches the Object panel's Selection Filter drop-down will be selected.

    NOTE: The mouse cursor icon will vary according to selected Locking Mode. It will be a pink diamond if Obstacle is selected, or a yellow cross otherwise.
- If Terrain Texture Tool toolbar button^C —— is selected

  Draws the Active Texture into the terrain, according to the settings specified in the Terrain Texturing panel.

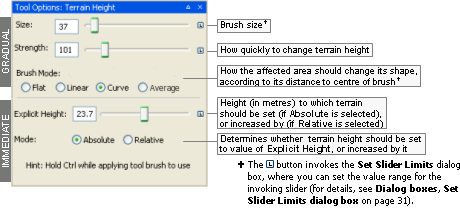

- If Terrain Height Tool toolbar button^D —— is selected

  Gradually increases the terrain height.
  - If left Ctrl^H is pressed

    Activates the explicit height brush (indicated by a green square), which immediately sets the terrain height to the value specified in the Explicit Height field (if the Absolute option button is selected), or immediately increases the terrain height by the value specified in the Explicit Height field (if the Relative option button is selected).

    For details on absolute and relative explicit height modes, see Terrain Height panel.
- If Terrain Filter Tool toolbar button^E —— is selected

  Gradually applies the selected filter onto the terrain.
- If Terrain Mesh Tool toolbar button^F —— is selected

  Cuts or repairs the terrain, according to the settings in the panel.
- If Terrain Import/Export toolbar button^I —— is selected

  Moves or resizes the selected area, depending on whether the mouse is clicked inside the selected area (in which case the move mode is activated) or in the blue border of the selected area (in which case the resize mode is activated).
  - If Alt is pressed

    Activates the height picker tool (indicated by the cursor icon), which samples the maximum height of the region selected by dragging the mouse and assigns it to the Terrain Import/Export panel's Maximum Height field.
  - If Ctrl is pressed

    Activates the height picker tool (indicated by the cursor icon), which samples the minimum height of the region selected by dragging the mouse and assigns it to the Terrain Import/Export panel's Minimum Height field.
- If Project Tool toolbar button^G —— is selected

  Selects the area to be locked, have changes committed, or have changes discarded (depending on which button is clicked after selection).
Right button click
- Over a model, shell, or particle

  Opens a context menu.
- If Terrain Texture Tool toolbar button^A —— is selected

  Displays the Terrain Texturing panel's^C context menu (for details, see Terrain Texturing viewport context menu).
Right button drag
- If Orthographic View toolbar button^A —— is enabled

  Moves camera in the direction of the drag.
- If Orthographic View toolbar button^A —— is disabled

  Rotates camera in the direction of the drag.
- If Terrain Import/Export toolbar button^I —— is selected

  Pans the map according to the drag movement.
- If Project Tool toolbar button^G —— is selected

  Pans the map according to the drag movement.
Middle button click
- If a shell is selected

  Links the selected shell to the clicked shell by a matching portal.
  - If V is pressed^H

    Makes a copy of the selected shell, and links both by a matching portal.

    V must be pressed before and during the middle button click.
- If Terrain Texture Tool toolbar button^C —— is selected

  Picks texture assigned to current alpha channel from the chunk under cursor.
- If Terrain Height Tool toolbar button^D —— is selected

  Gradually decreases terrain height.
- If Terrain Import/Export toolbar button^I —— is selected

  Displays the clicked area in the viewport — the top view of the world is abandoned.
- If Project Tool toolbar button^G —— is selected

  Displays the clicked area in the viewport — the top view of the world is abandoned.
Scroll wheel rotate

Moves the camera forward and backwards.
- If Shift is pressed and at least one object is selected

  Rotates the selected object(s).
- If Space key is pressed

  Increases or decreases the camera speed, depending on the direction of the wheel rotation.

  Performs the same functions as the ,,, and toolbar buttons.^A
- If Object Tool toolbar button^B —— is selected
  - If Ctrl is pressed and a shell is selected

    Rotates the shell according to the snapped portal.
  - If Shift is pressed:

    Rotates the selected objects by 15 degrees.

    If Object Grid Snap's Enabled field is selected

    Rotates the selected objects by the number of degrees specified in the Angle field.

    If only one object is selected, then it will be rotated around itself. If more than one object is selected, then they will be rotated around their common centre.

    Object panel's Object Grid Snaps group box

    If only one object is selected, then it will be rotated around itself. If more than one object is selected, then they will be rotated around their common centre.
- If Terrain Import/Export toolbar button^I —— is selected

  Zooms the world map in and out, according to the direction of scroll.
- If Project Tool toolbar button^G —— is selected

  Zooms the world map in and out, according to the direction of scroll.

A — For details, see Toolbar.

B — For details, see Object panel.

C — For details, see Terrain Texturing panel.

D — For details, see Terrain Height panel.

E — For details, see Terrain Filtering panel.

F — For details, see Terrain Mesh Cut/Repair panel.

G — For details, see Project panel.

H — For details, see Keyboard shortcuts.

I — For details, see Terrain Import/Export panel.

J — For details, see BigWorld Messages panel.

2.7. Dialog boxes

2.7.1. Browse For Folder dialog box

Accessed via the File → Open Space menu item (for details, see Menu items), this dialog box allows you to choose the space to load in World Editor.

Browse For Folder dialog box

The list below describes the fields on this dialog box:

Folder list

Lists of sub-folders available in the resources folder.

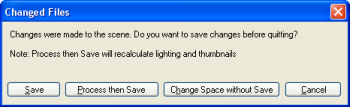

2.7.2. Changed Files dialog box

Automatically invoked by World Editor when user chooses to perform an action that would otherwise discard unsaved changes (such as closing the application or changing space), it allows the user to specify how to handle these changes before proceeding.

The following actions will have World Editor invoke this dialog box in case there are unsaved changes:

Creating a new space (via the File → New Space menu item)
Opening an existing space (via the File → Open Space menu item)
Reloading all chunks in current space (via the File → Reload All Chunks menu item or the Ctrl+K keyboard shortcut)
Closing the application (via the File → Exit menu item, the window button, or any keyboard shortcut)

Changed Files dialog box

The list below describes the fields on this dialog box:

Save

Saves changes to the world — without calculating shadow, lighting, thumbnail, or ecotype information —, before proceeding with operation.
Process then save

Recalculates shadow, lighting, thumbnail, or ecotype information, then saves changes to the world, before proceeding with operation.
Change space without save

Proceeds with operation without saving changes.
Cancel

Closes the dialog box without performing any action.

2.7.3. Convert Space dialog box

Accessed via the File → Convert Space menu item (for details, see Menu items), this dialog box allows you to convert the current simple terrain space to one with terrain advanced features.

Note

A Simple Terrain is one created with BigWorld Technology 1.8 or earlier, or one created by selecting the File → New Space menu item, then clearing the New Space dialog box's Use Simple Terrain check box (for details, see New Space dialog box).

Simple Terrain has the following characteristics/limitations:

Fixed resolution of 25x25 height poles.
Only up to 4 texture layers.
No texture LOD.

Convert Space dialog box

The fields in this dialog box have the same description as the New Space dialog box's Space Terrain Creation Settings group box (for details, see New Space dialog box).

Convert

Converts the current space to one with terrain advanced features specified in the dialog box.

For details on the converted files, see the document Client Programming Guide's section Chunks → Implementation files.
Cancel

Closes the dialog box without performing any action.

2.7.4. New Space dialog box

Accessed via the File → New Space menu item (for details, see Menu items), this dialog box allows you to create a new — blank — space according to the settings specified in it.

New Space dialog box

The list below describes the fields on this dialog box:

Space name

Name of the space to create.
Space path

Parent folder of the space to create. The Browse button () opens the New Space Folder dialog box (for details, see New Space Folder dialog box).
Space dimensions
- Width, Height

  Number of chunks in the space, in the east/west and north/south direction, respectively.
Space terrain creation settings
- Use simple terrain

  Determines whether to use terrain advanced features in the creation of the new space.

  If this check box is cleared, then the remaining fields in the group box are disabled and the terrain will have the following characteristics:
  - Fixed resolution of 25x25 height poles.
  - Only up to 4 texture layers.
  - No texture LOD.
- Height map resolution

  Resolution of the height map per chunk.

  Higher values in this field result in a more detailed terrain geometry, but also in higher rendering times.

  Recommended value is 128.
- Normal map resolution

  Resolution of the normal map per chunk — this map contains information about the slope of the terrain, and is used for illumination.
- Hole map resolution

  Resolution of the holes map per chunk — this map contains information about the holes in the terrain, which are needed to transition between the terrain and an indoor chunk (shell).
- Shadow map resolution

  Resolution of the terrain shadow map per chunk — this map contains shadow information originated from objects (e.g., a house, which casts a shadow in the terrain) and from the terrain itself (e.g., a hill in the terrain, which casts a shadow onto itself).

  Higher values in this field result in a longer time for shadow generation for the terrain.

  Recommended value is 32.
- Texture blend map resolution

  Resolution of the texture layers blend maps per chunk — this map contains a blend information similar to an opacity/alpha channel on how to blend the textures onto the terrain.

  Higher values in this fields allow for a more detailed terrain texturing, but also result in higher memory use.

  Recommended value is 128.
Default terrain texture

Texture map to initially use for the terrain in the new space.
Create

Creates space under the folder specified in Space Path.

For details on the created files, see the document Client Programming Guide's section Chunks → Implementation files.
Cancel

Closes the dialog box without performing any action.

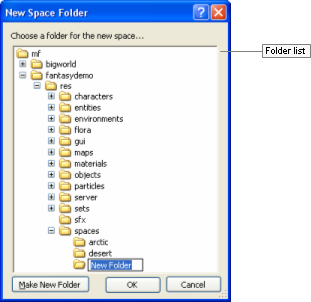

2.7.5. New Space Folder dialog box

Accessed via the Browser button () in the New Space dialog box's Space Folder field (for details, see New Space dialog box), this dialog box allows you to create a folder for the new space, or choose an existing one.

New Space Folder dialog box

The list below describes the fields on this dialog box:

Folder list

Lists the sub-folders available in the resources folder.
Make new folder

Creates a new folder under the one currently selected in Folder List.

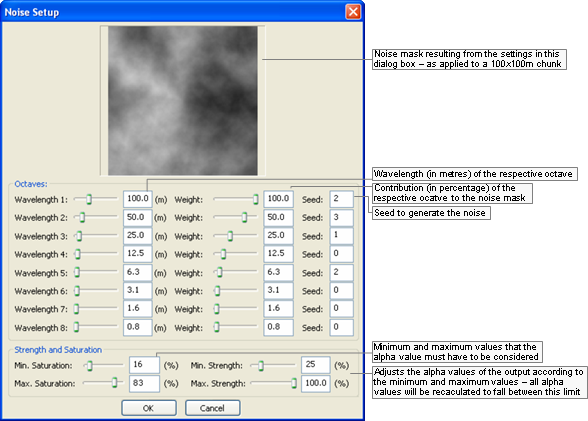

2.7.6. Noise Setup dialog box

Invoked by the Terrain Texturing panel's Noise group box's Noise Setup button (for details, see Terrain Texturing panel), this dialog box lets you configure the noise mask to be used in that panel.

Noise Setup dialog box

The list below describes the fields on this dialog box:

Octaves
- Wavelength

  Length (in metres) of the respective octave.
- Weight

  Contribution (in percentage) of the respective octave in the noise mask.
- Seed

  Seed to generate the noise.
Strength and saturation
- Min Saturation

  Minimum value that the alpha value must have to be used in the noise mask.
- Max Saturation

  Maximum value that the alpha value might have to be used in the noise mask.
- Min Strength

  Minimum value that the output alpha value will have — all alpha values will be recalculated to fit between Min Strength and Max Strength.
- Min Strength

  Maximum value that the output alpha value will have — all alpha values will be recalculated to fit between Min Strength and Max Strength.

2.7.7. Placement Controls dialog box

Invoked by the Object panel's Placement Method drop-down list box (for details, see Object panel) when the value (Edit Presets…) is selected, this dialog box allows you to create a group of settings that determine the values between which to randomise the orientation and size during the placement of objects.

This allows the creation of worlds with greater variety, but with less work by the builder.

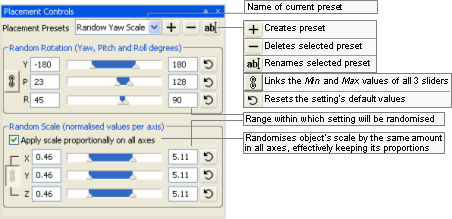

Placement Controls dialog box

The list below describes the fields on this dialog box:

Placement presets

Name of current preset.
Opens the Placement Preset Name dialog box, where the user can specify the name of a new preset.

Once the name is specified, all rotation and scale fields are set to their default values.

Placement Preset Name dialog box
Opens the Placement Controls dialog box, where the user is prompted to confirm the deletion.

After deleting the preset, Placement Presets drop-down list box is set to (Normal Placement).

Placement Controls deletion confirmation dialog box
Opens the Placement Preset Name dialog box, where the user can change the name of the preset.
Random rotation

Group of fields determining the range of values within which the object's rotation (yaw, pitch, and roll) should be randomised.
- Links the Y, P, and R values to each other, for both Min and Max.

  This means that when Min or Max value of a rotation component is changed, the others are automatically changed as well.
- Y

  Min and Max values for yaw randomisation during object placement.
- P

  Min and Max values for pitch randomisation during object placement.
- R

  Min and Max values for roll randomisation during object placement.
- Resets Min and Max values of the respective rotation component to its default value.
Random scale

Group of fields determining the range of values within which the object's scale (in x-, y-, and z-axes) should be randomised.
- Apply scale proportionally on all axes

  Randomises object's scale by the same amount in all axes, effectively keeping its proportion.

  The toggle button is automatically selected when this option is selected, and cannot be cleared.
- Links the X, Y and Z values to each other, for both Min and Max.

  This means that when Min or Max value of a scale component is changed, the others are automatically changed as well.
- X

  Min and Max values for scale randomisation along the x-axis.
- Y

  Min and Max values for scale randomisation along the y-axis.
- Z

  Min and Max values for scale randomisation along the z-axis.
- Resets Min and Max values of the respective scale component to its default value.

2.7.8. RAW Terrain Import dialog box

Invoked by the Terrain Texturing panel's Imported group box's Browse button's Open dialog box (for details, see Terrain Texturing panel), this dialog box lets you select the file to be used as import mask in that panel.

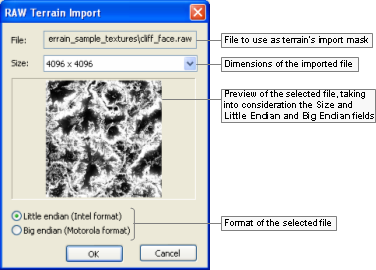

RAW Terrain Import dialog box

The list below describes the fields on this dialog box:

File

Path and name of the RAW file selected in the previous dialog box.
Size

Dimensions of the imported file — this is not necessarily the original size of the file, but rather the size that you want it to have as a mask.
Little endian (Intel format)

Determines whether the original mask was saved using the Intel format.
Big endian (Motorola format)

Determines whether the original mask was saved using the Motorola format.

2.7.9. Resize Terrain Blends dialog box

Accessed via the File → Resize Terrain Texture Blends menu item (for details, see Menu items), this dialog box allows you to change the resolution of the texture layers blend map — this map contains a blend information similar to an opacity/alpha channel on how to blend the textures onto the terrain.

Resize Terrain Blends dialog box

The fields in this dialog box have the same description as the New Space dialog box's Space Terrain Creation Settings group box (for details, see New Space dialog box).

New texture blend map resolution

New resolution of the texture layers blend map.

Higher values in this fields allow for a more detailed terrain texturing, but also result in higher memory use.

Recommended value is 128.
Resize

Resizes the current texture layers blend map to the specified resolution.
Cancel

Closes the dialog box without performing any action.

2.7.10. Set Slider Limits dialog box

Accessed by the button in various sliders, this dialog box allows you to specify the minimum and maximum values for the slider that invoked it.

Set Slider Limits dialog box

2.7.11. WorldEditor Shortcuts dialog box

Accessed via the Help → Shortcuts menu item (for details, see Menu items), the World Editor Shortcuts dialog box displays a list of shortcuts available on World Editor. For details on the complete list, see Keyboard shortcuts.

World Editor Shortcuts dialog box

2.8. Chunk visualisation modes

BigWorld offers different ways to visualise the chunks in the scene, so that the world builder can choose the one most suitable for the task at hand.

The visualisation modes are switched by pressing F6 (for details, see Function keys), and are described below:

Normal

Displays the terrain as it will be rendered in the scene — no overlay is applied on the interface.

Normal mode

Chunk borders

Overlays a continuous white line around the border of the chunk over which the mouse is positioned.

Chunk Borders mode

Pole markers

Divides the chunk over which the mouse is, and overlays pole markers icons on the corner of each one.

Pole Markers mode

Wireframe

Divides the chunk over which the mouse is, and overlays the wireframe grid indicator over each one.

Wireframe mode

2.9. Assets

Assets used to populate the world are accessed via the Asset Browser. For details, see Asset Browser panel.

Note

Selected objects are indicated by white corners on their bounding boxes.

Selectable object s are indicated by rendering their bounding boxes in green when the mouse hovers over them — the objects that can be currently selected are specified by the Object panel's Selection Filter drop-down list box (for details, see Object panel).

Objects that could not be loaded are indicated by a red box and a message in the BigWorld Messages panel — to view this kind of message, the BigWorld Messages panel's Assets check box must be selected (for details, see BigWorld Messages panel).

2.9.1. Models

This node gives access to all exported .model files. Models refer to the basic props that can be placed in the world.

Note

For more information on models, see:

document Client Programming Guide's section Models.
document Content Creation Manual's lessons (the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items):
- Modify a Model in Model Editor
- Add Models to the World
- Best Practices → Animation tree — Using LOD models to share animations

For details on .model files' grammar, see the document File Grammar Guide's section .model.

2.9.2. Shells

Shells refer to the indoor chunks containing portals that you have exported to the shells folder.

A new indoor chunk is created by selecting a shell and placing it in the world. The new indoor chunk will contain all portals referenced in the shell.

Note

For more information on shells, see :

Potential problems placing models and shells.
Creating Shells.
document Content Creation Manual's lessons (the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items):
- Create an Internal Shell
- Create an Internal Area in World Editor Using Shells
- Add Lights to the World → Lighting Environments
- Outdoor-to-Indoor Transitions → Placing an interior shell

2.9.3. Trees

This node gives access to all SpeedTree files (.spt) files.

Note

For more information on SpeedTree files, see:

The document Third-Party Integrations chapter SpeedTree.
document Content Creation Manual's lesson Best Practices → Using SpeedTree (the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items)

2.9.4. Prefabs

This node gives access to items previously saved as prefabs, so you can place them in the terrain.

Prefabs are elements such as objects, models, lights, shells, and items that are saved in World Editor via the Edit → Save Selection As Prefab menu item (for details, see Menu items).

They allow the artist to save a carefully arranged group of items to a single file, so that they can be used elsewhere in the world, without having to arrange the objects a second time.

Note

For more information on prefabs, see the document Content Creation Manual's lesson Create an Internal Area in World Editor Using Shells → Creating templates and prefabs (the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items).

2.9.5. Entities

Comprised of .py files, scripted entities are the dynamic components of a BigWorld game. World Editor can insert an entity placeholder into a chunk, so that your initialisation script (also called a personality script) can read it and create the entity as the chunk is loaded (via fetchEntitiesFromChunks — for details, see the BaseApp C API's entry Class List → FetchFromChunksJob).

There are several placeholder models available in the bigworld/tools/worldeditor/resources/models folder.

Note

For more information on entities, see:

Moving entities.
document Client Programming Guide's chapter Entities.

For example, to create a new entity placeholder called Monster, follow the steps below:

Add new entry to <res>/scripts/entities.xml.

This is illustrated below:
```
<Monster/>
```

Create the file <res>/scripts/entity_defs/Monster.def.

A .def file is used to describe the properties and methods of the new entity (for details, see the document Server Programming Guide's section Directory Structure for Entity Scripting → The Entity Definition File).

An example entity definition file is illustrated below:

<root>
  <Properties>
    ...
    <my_property>
      <Type>       INT8          </Type>
      <Flags>      OTHER_CLIENTS </Flags>
      <Default>    0             </Default>
      <Persistent> true          </Persistent>
      <Editable>   true          </Editable>
    ...

	For details, see Supported data types.
	Must be set to true in order to make the property editable in World Editor.

Create the script file <res>/scripts/editor/Monster.py.

The function modelName specifies the model to represent the placeholder. Several models can be attached to one entity, which depends on the entity's attributes (for details, see fantasydemo/res/scripts/editor/Creature.py).
```
class Monster:
  def modelName( self, props ):
    return "helpers/props/standin.model"
```

2.9.5.1. Supported data types

World Editor directly supports only UINT/INT types, plus STRING and FLOAT (for details on the data types supported by BigWorld's game engine, see the document Server Programming Guide's section Properties → Property Types → Primitive Types).

You may create aliases for existing types by adding an entry to <res>/scripts/entity_defs/alias.xml (for details, see the document Server Programming Guide's section Properties → Property Types → Primitive Types).

Types supported by the game engine but not directly supported by World Editor are handled the following way:

World Editor uses Python's repr() function to get the string form of the data.
After using the data, World Editor uses the eval() function to convert the string representation back.

Therefore, data might be lost if for an object you have eval(repr(obj)) different from obj. Also, changes will be lost (object will retain its original value) if you set it to some illegal data.

Besides these types, you can also use ENUM types, in which case you must create a function to return a list of available enumeration values, as illustrated below:

def getEnums_<AttributeName>( self ):

The code excerpt below illustrates the use of enumeration by the Creature object in fantasydemo/res/scripts/editor/Creature.py:

class Creature:
  UNKNOWN      = 0
  STRIFF       = 1
  STRIFF_YOUNG = 2
  CHICKEN      = 3

  modelNames = {
    UNKNOWN:      None,
    STRIFF:       "characters/npc/striff/striff.model",
    STRIFF_YOUNG: "characters/npc/striff/striff_young.model",
    CHICKEN:      "characters/npc/chicken/chicken.model"
    }

  def modelName( self, props ):
    return Creature.modelNames[ props[ "creatureType" ] ]

  def getEnums_creatureType( self ):
    return ((Creature.STRIFF       , "Striff"       ),
           (Creature.STRIFF_YOUNG  , "Young Striff" ),
           (Creature.CHICKEN       , "Chicken"      ))

  def getEnums_creatureAge( self ):
    return (("Old"    , "Striff"       ),
           ("Young"   , "Young Striff" ),
           ("Evolved" , "Chicken"      ))
# Creature.py

fantasydemo/res/scripts/editor/Creature.py

2.9.6. UserDataObject

This nodes gives access to user data objects that can be used to embed user defined data in Chunk files. User data objects are linkable objects which possess data that can be used by entities and scripts to achieve arbitrary tasks. User data objects can be placed in the world using World Editor, allowing users to edit their properties just like entities. The editor allows links to be added, edited, and deleted.

2.9.6.1. Creating the PatrolNode user data object

This section describes how to create the PatrolNode user data object as an example. These are the steps that were required to create the PatrolNode user data object type:

Add new entry to <res>/scripts/user_data_object.xml
```
<root>
  ...
  <PatrolNode />
  ...
</root>
```
Create the file <res>/scripts/user_data_object_defs/PatrolNode.def

A definition file is used to describe the properties and methods of the new user data object.
```
<root>
  <Domain> CELL </Domain>
  <Properties>
    <patrolLinks>
      <Type> ARRAY <of> UDO_REF </of> </Type>
      <Editable> true </Editable>
    </patrolLinks>
  </Properties>
</root>
```
For details on definition files, see the document Server Programming Guide's sections Directory Structure for User Data Object Scripting → The User Data Object Definition File.
Create script file <res>/scripts/editor/PatrolNode.py

There are several editor callback functions that can be implemented in the editor script
- getEnum_<PROPERTY_NAME> - This can be used to define the possible values for this property displayed in the World Editor.
- modelName - Used to define a custom model for this user data object type.
- showAddGizmo - Guard function used to control the display of the add gizmo.
- canLink - Guard function that checks if the user data object can link to the target object.
- onDeleteObject - A callback function that gets called just before the user data object is deleted.
- onStartLinkMenu - Returns the options that should appear in the custom context-sensitive menu for this user data object link.
- onEndLinkMenu - Calls a command function based on the users choice in the context-sensitive menu.
- postClone - A callback function that gets called just after the user data object is cloned.

2.9.6.2. Using User Data Objects inside World Editor

User data objects can be found in the “User Data Objects” folder in the Asset Browser folder hierarchy. User data objects can be added to a space by click-dragging them from the asset browser into the space. When selected, user data object properties may have a link gizmo and/or a clone gizmo depending on their type.

Link Gizmo - Properties of type UDO_REF have a link gizmo. The link gizmo can be used to add a link to another user data object. If no link property is selected for the object, the first link property will be used to store the new link. If this property is a standard link property, the previous link will be discarded. If this property is a link array, the link will be added to the end of the array.
Clone Gizmo - Properties that are arrays of UDO_REF have a clone gizmo. The clone gizmo can be used to clone the current user data object. All properties are cloned except for the links, which are cleared. The postClone callback function allows scripters to decide how links behave using the clone gizmo, e.g. for PatrolNode objects, a link from the parent to the cloned node is created using this callback.

Selections of user data objects can be cloned using the <C> key. Linking information is retained when cloning selections of user data objects or when saving user data object prefabs.

Right-clicking on a user data object reveals its context-sensitive menu. In the first level the user data objects properties panel is selectable by default. If the user data object also has outgoing links, each property that has one or more links will also appear in this first level of the context-sensitive menu. When a property is selected, the second level of the context-sensitive menu is displayed. A single "Delete" operation is displayed is the link property is a standard link, or a single "Delete all" operation is displayed if the link property is an array of links.

Right-clicking on a user data object link reveals its context-sensitive menu. By default, the "Delete all" operation is selectable. This will delete all links between the two user data objects. Some user data object types (the user data object PatrolNode for example) make use of the optional python scriptable custom menu. This menu can contain type specific operations. Note that this menu is based on the type of the user data object, not on the type of the link property. Currently one of the user data objects is selected at random to perform the link operation, so the script operations should be commutative to the order in which the user data objects are given.

When there exists a link between two user data objects, but only one of the user data object is loaded, a chunk link extends out from the loaded user data object. This chunk link points to the centre of the chunk that contains the unloaded linked user data object. When performing link operations, the user data objects on either end of the link must be loaded. If one of the user data objects is not loaded, it will be force loaded.

When using a lock server, only some regions of the space will be editable. This has the following implications on what operations can be applied to user data objects:

Uneditable Regions - No operations can be applied to user data objects located in uneditable regions. These user data objects can not be moved, deleted, have changes made to their incoming or outgoing links, or have any of their properties changed.
Editable Regions - User data objects located in editable regions are either fully editable or partially editable.
- Fully Editable - User data objects that only link to user data objects in editable regions are fully editable. These user data objects can be moved, deleted, have their properties changed, and have incoming and outgoing links added and removed.
- Partially Editable - User data objects that link to user data objects in uneditable regions are only partially editable. These user data objects can not be deleted, can only move inside their current outside chunk, and cannot edit incoming or outgoing links to user data objects in uneditable regions. These user data objects can however add and remove links to user data objects in editable regions.

Both standard links and chunk links that extend across a lock boundary have a red tint to indicate that they are uneditable.

Increasing the number of user data objects in a space and increasing the distance travelled by their links increases the load placed on World Editor in a number of ways. In order to control the amount of work that will be performed at any one time a set of options have been exposed in World Editor’s options.xml, see the document File Grammar Guide's section → World Editor.

There is a cost associated with recalculating the geometry of a link so that it conforms to the terrain as chunks are loaded in. The user can control the size of the jobs as well as how often recalculation are performed by editing the last three variables above.

Chunk links do not have a context-sensitive menu because it would be of limited usefulness. Chunk links have a different kind of mapping than standard links, chunk links being one-to-many, while standard links are one-to-one. A single chunk link represents one or more property links to one or more user data objects in a particular outside chunk. As such the only useful operation would be to delete all links between the loaded user data object or entity, and all user data objects or entities in the unloaded chunk. It is unlikely that such an operation would be useful in practice. Another issue is regarding ambiguity among chunk links. If a user data object or entity has many chunk links, how is the user supposed to know which chunk link points to which chunk, and what user data objects or entities are being linked to. Therefore it was decided to avoid this feature.

2.9.7. Lights

The light settings allow you to create a variety of in-game lighting conditions, and to easily preview how they will look in the final game. You can light your models from a variety of directions and using different colours.

World Editor provides some light definition files in the bigworld/res/helpers/lights folder.

The kind of lighting to apply to the world is determined by General Options panel's Lighting group box (for details, see General Options panel).

Note

For more information on lights, see the document Content Creation Manual's lessons (the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items).

Add Lights to the World
Best Practices → Using the complete range of textures and lighting
Create an Internal Area in World Editor Using Shells → Creating templates and prefabs
Outdoor-to-Indoor Transitions → Placing an interior shell

For details on the grammar of light settings files, see the document File Grammar Guide's section <light>.xml.

2.9.8. Particles

This node gives access to ambient particle systems created in Particle Editor (for details, see Particle Editor), so you can place them in your world.

Note that these particle systems must be time-triggered, otherwise you will not see any particles spawned.

Note

For more information on particles, see:

document Client Programming Guide's section Particles.
document Content Creation Manual's lessons ((the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items).
- Manage Resources → Particles
- Generate Particles for Special Effects

For details on the grammar of particle files, see the document File Grammar Guide, section <particle>.xml.

2.9.9. Textures

This node gives access to texture images, used to paint the terrain.

Texture files can be dragged into Terrain Texturing panel's Texture In Chunk fields.

Note

For more information on textures, see:

Terrain Texturing panel.
document Content Creation Manual's lesson Create and Apply Terrain Texture Maps (the document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items).

2.9.10. Brushes

Terrain texture settings can be saved into .brush files that can be later loaded from the Asset Browser to help reduce the time needed to setup the many terrain texturing options.

2.9.11. Special Effects

These files can be used in the Weather panel, in its Properties list, to allow for special weather effects for different weather systems.

2.9.12. Misc

Custom chunk items can be dragged from this folder into the 3D world. BigWorld ships with one custom chunk item, water, represented by the water.xml file.

2.9.13. Post-Processing

The Asset Browser contains additional folders to aid in the creation of post-processing effects. These folders are:

Post-Processing Render Targets: Defined in Python in bigworld\res\scripts\client\PostProcessing\RenderTargets\__init__.py.
Post-Processing Effects: Defined in XML in the file bigworld\tools\worldeditor\resources\post_processing_effects.xml. Each effect listed in the XML file corresponds to an Effect from the PostProcessing Python module, defined in the folder bigworld\res\scripts\client\PostProcessing\Effects.
Post-Processing Phases: Defined in XML in the file bigworld\tools\worldeditor\resources\post_processing_phases.xml. Phases are created through the Python script bigworld\res\scripts\client\PostProcessing\EditorPhases.py.
Post-Processing FX Files: Lists .fx files from the folder bigworld\res\shaders\post_processing.
Post-Processing Textures: Lists texture files from the folder bigworld\res\system\maps\post_processing.

For more information on the contents of these folders see Post-Processing panel.

2.10. Panel summary

Options for the tool modes and other elements are displayed in configurable panels. These panels contains most of the GUI for interacting with the editor.

The position and size of these panels can be changed directly by dragging the border and edges. They can be docked on any edge of the screen, or collapsed into shared panels. The customised layout is automatically saved for future sessions (for details, see Panel System.)

The descriptions in this section assume the World Editor's default layout — the default layout can be loaded via the View → Load Default Panel Layout menu item (for details. see Menu items).

The default layout consists of two main panels:

Tool Options panel, which displays the options for the current tool. These tools are:
- Object panel — See Object panel.
- Terrain Texturing panel — See Terrain Texturing panel.
- Terrain Height panel — See Terrain Height panel.
- Terrain Filtering panel — See Terrain Filtering panel.
- Terrain Mesh Cut/Repair panel — See Terrain Mesh Cut/Repair panel.
- Terrain Import/Export panel — See Terrain Import/Export panel.
- Project panel — See Project panel.
Miscellaneous panel, with various tabs that are independent of current mode. They are:
- Asset Browser panel — See Asset Browser panel.
- Scene Browser panel — See Scene Browser panel.
- Post-Processing panel — See Post-Processing panel.
- Properties panel — See Properties panel.
- Chunk Textures panel — See Chunk Textures panel.
- General Options panel — See General Options panel.
- Navigation panel — See Navigation panel.
- Weather Preview panel — See Weather Preview panel.
- Environment Options panel — See Environment Options panel.
- Histogram panel — See Histogram panel.
- BigWorld Messages panel — See BigWorld Messages panel.

The following sub-sections describe each panel, and the settings available on them.

2.10.1. Object panel

This panel allows the user to configure overall options on how to handle objects, such as selection behaviour, reference coordinate system, snap mode, and placement randomisation settings.

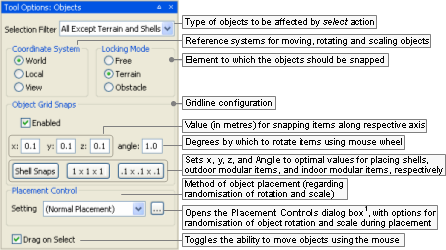

Object panel

1 — For details, see Placement Controls dialog box.

The list below describes the fields on this panel:

Selection filter

Sets the type of elements of the world that will be affected by a select action. This will affect selections made via the mouse (for details, see Mouse controls), the Edit → Select All menu item (for details, see Menu items), and the Ctrl+A keyboard shortcut (for details, see Keyboard shortcuts).

Also, as you move the mouse around the world, World Editor will display the bounding boxes only for selectable objects.
Coordinate system

Reference coordinate systems for moving, rotating and scaling objects.
- World

  Uses world coordinate system.
- Local

  Uses object coordinate system.
- View

  Uses camera coordinate system.
Locking mode

Element to which the objects should be snapped.
- Free

  Unlocks object movement — this is where the red, green, and blue direction axis can be used to drag the object along a single axis.

  The height of the last placed object is used when placing new objects.

  Note

  Mouse cursor icon for this mode is a cross ().
- Terrain

  Sets object movement to slide along terrain.

  This setting is ignored by the rotation gizmo (activated by pressing Shift — for details, see Keyboard shortcuts).

  Note

  Mouse cursor icon for this mode is a cross ().
- Obstacle

  Sets object movement to slide along obstacles, including terrain.

  This setting causes the position gizmo to display a white sphere at its origin, which can be used to move the object along obstacles.

  Please note that the snapping is applied only when there is exactly one item selected.

  Note

  Mouse cursor icon for this mode is a diamond ().
Object grip snaps

Snap options for the snapping behaviour of objects.

Shell snapping is automatically enforced when placing a shell in the world, overriding all settings in this group box. However, you can modify the shell snap settings by editing bigworld/tools/worldeditor/options.xml's section shellSnaps. For details on this file's grammar, see the document File Grammar Guide's section → World Editor.
- Enabled

  Enables the snapping of objects, according to x, y, z, and Angle values.
- x

  Value (in metres) for snapping items along the x- axis.
- y

  Value (in metres) for snapping items along the y- axis.
- z

  Value (in metres) for snapping items along the z- axis.
- Angle

  Number of degrees by which to rotate the selected item using the mouse wheel (for details, see Mouse controls).

  If only one item is selected, then it will be rotated around itself. If more than one item is selected, then they will be rotated around their common centre.

  If the Enabled check box is cleared, then this value will be ignored, and selected object(s) will be rotated by 15˚.
- Shell snaps

  Sets x, y, z and Angle to the optimal values for placing shells.
- 1 x 1 x 1

  Sets x, y, z and Angle to the optimal values for placing outdoor modular items.
- .1 x .1 x .1

  Sets x, y, z and Angle to the optimal values for placing indoor modular items.
Placement control

Method of object placement (regarding randomisation of rotation and scale).
- Setting

  Specifies how to place new objects in the world.

  You can determine that objects should be placed as they are, or apply random rotation and/or scale. The latter is useful to give a natural look to the finished world, as each instance of the object will have orientation and size different from others.

  The drop-down list box has the following options:
  - (Normal Placement)

    Objects will be placed with their original size and orientation.
  - Preset list

    Objects will be placed in the world with rotation and scale randomised according to values defined for the named preset in the Placement Controls dialog box (for details, see Placement Controls dialog box).
- Opens the Placement Controls dialog box (for details, see Placement Controls dialog box), where you can specify ranges within which rotation and scale will be randomised during object placement.
Drag on select

Toggles the ability to move selected items via the mouse.

If turned off, objects can only be moved via the position gizmo.

2.10.2. Terrain Texturing panel

Note

To distinguish from other modes, the brush is a purple dotted circle.

Terrain Texturing brush

Because this panel allow a great number of ways in which to interact with the terrain, the following sub-sections should also be consulted:

Terrain Texturing viewport context menu

This sub-section details the menu items available in the viewport's context menu (accessed by right-clicking an area in the viewport ).
Terrain Texturing keyboard shortcuts

This sub-section details the keyboard shortcuts that are unique to this mode.
.Terrain Texturing mouse controls

This sub-section details the mouse controls that are unique to this mode.
Terrain Texturing gizmos

This sub-section details the gizmos that are unique to this mode.

For more details on using terrain textures, see the document Content Creation Manual's lesson Create and Apply Terrain Texture Maps.

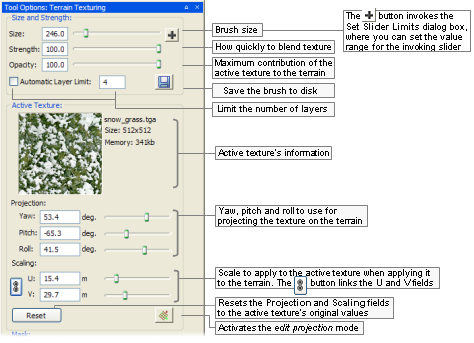

Terrain Texturing panel (top)

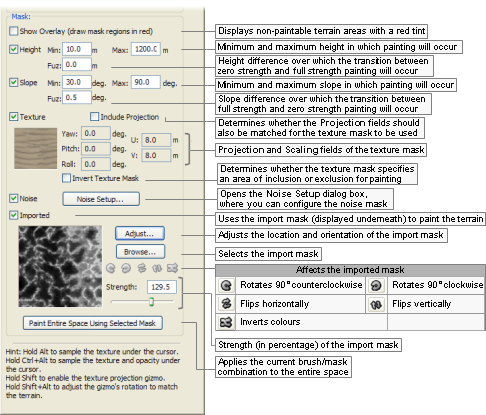

Terrain Texturing panel (bottom)

The list below describes the fields on this panel:

Size

Sets the size of the brush (in metres) used to paint the selected texture onto the terrain.

The [ (square left bracket) and ] (square right bracket) keys^A decrease and increase the size of the brush, respectively.
Strength

Strength of the brush when blending texture onto terrain area underneath brush icon.

As you hold the left mouse button, the texture underneath the brush icon is gradually blended into the existing terrain texture. Small Strength values cause the blending to occur slowly, while the opposite happens for big Strength values.

Dragging the left mouse button blends the selected texture to the underlying terrain. Shift+[ (square left bracket) and Shift+] (square right bracket) keys^A decrease and increase the strength of the brush, respectively.
Opacity

Maximum contribution of the Active Texture to the terrain under the cursor.
Save the brush to disk

This saves the brush settings to disk. The saved brush will appear in the Brushes section of the Asset Browser. The saved settings include the orientation and size of the brush, the texture used, the strength, the opacity, all of the the mask settings except the import mask.
Automatic layer limit

This limits the number of texture layers that terrain painting can create.
Active texture
- Active texture's information

  Displays a thumbnails of the active texture, alongside its filename, size, and memory footprint.
- Projection

  Group of fields configuring the projection that should be applied to the Active Texture when painting or replacing the texture in the terrain.

  All fields in this group can be automatically updated by the texture projection tool (indicated by the cursor icon — a red- and green-sided square indicates the clicked area), which adjusts the Projection fields to that of the terrain under the cursor.
  - Yaw

    Rotation about the y-axis to apply to the texture when painting or replacing the texture in the terrain.
  - Pitch

    Rotation about the x-axis to apply to the texture when painting or replacing the texture in the terrain.
  - Roll

    Rotation about the z-axis to apply to the texture when painting or replacing the texture in the terrain.
- Scaling

  Group of fields configuring the scaling to be applied to the Active Texture when painting or replacing the texture in the terrain.
  - U

    Scale in the u-direction to apply to the texture when painting or replacing the texture in the terrain.
  - V

    Scale in the v-direction to apply to the texture when painting or replacing the texture in the terrain.
  - Links the U and V fields, so that the texture is uniformly scaled.
- Reset

  Resets the Project and Scaling groups of fields to the Active Texture's original values.
- Activates the edit projection mode, in which the texture projection/scale gizmo (for details, see Terrain Texturing gizmos) is displayed for the last-edited area.

  Note

  You can activate the texture projection/scale gizmo for a different area by clicking it while pressing Shift (for details, see Terrain Texturing keyboard shortcuts and .Terrain Texturing mouse controls).
Mask

Group of fields configuring how to apply the import mask to the terrain.
- Show overlay

  Determines whether non-paintable areas of the terrain (as determined by the import mask) should be rendered with a red tint.
- Height
  - Determines whether the texture painting should be restricted to a height range.
  - Min

    Minimum terrain height in which texture painting should occur.
  - Max

    Maximum terrain height in which texture painting should occur.
  - Fuz

    Height difference over which the transition between zero strength and full strength painting will occur.

    This can be used to create fuzzy edges. If the value is set to 0, then painting around the Min or Max heights will result in a sharp edge.
- Slope
  - Determines whether the texture painting should be restricted to a slope range.
  - Min

    Minimum terrain slope in which texture painting should occur.
  - Max

    Maximum terrain slope in which texture painting should occur.
  - Fuz

    Slope difference over which the transition between zero strength and full strength painting will occur.

    This can be used to create fuzzy edges. If the value is set to 0, then painting around the Min or Max slopes will result in a sharp edge.
- Texture
  - Determines that the texture will only be painted over areas that match the texture mask settings, i.e. it will only paint over the texture mask's selected texture (or if it should exclude those areas, if the Invert Texture Mask check box is selected). This can be useful for replacing textures.
  - Include projection

    Determines whether the projection of the terrain under the cursor should be matched for applying the mask.
  - Yaw, Pitch, Roll, U, V

    Projection and Scaling fields that the texture underneath the cursor must have for the painting to be enabled (or disabled, if the Invert Texture Mask check box is selected).
  - Invert texture mask

    Determines whether the texture mask should be used to specify the areas where texture painting will occur, or specify the areas where it will be excluded.
- Noise
  - Determines whether the texture painting should use the specified noise mask.
  - Noise setup

    Opens the Noise Setup dialog box (for details, see Noise Setup dialog box), where you can configure the noise mask.
- Imported
  - Determines whether to use the import mask to paint the Active Texture onto the terrain.
  - Adjust

    Allows you to adjust how to use the import mask, by doing the following:

    Displaying a top view of the space, where you can relocate and resize the import mask.

    Enabling the Browse button.

    Enabling the , , , , and buttons.

    Enabling the Strength field.
  - Browse

    Opens the Open dialog box, where you specify the import mask, which can have the .r16, .raw, or .bmp extension.

    If a RAW file is specified, then the RAW Terrain Import dialog box is displayed after clicking the Open button — for details, see RAW Terrain Import dialog box.
  - Rotates the import mask 90º counterclockwise.
  - Rotates the import mask 90º clockwise.
  - Flips the import mask horizontally.
  - Flips the import mask vertically.
  - Inverts the colours in the import mask.
  - Strength

    Strength (in percentage) of the import mask.
- Paint entire space using selected mask

  Applies the current brush/mask combination to the entire space.

  This is a quick way to paint, for example, snow peaks or rock faces.

2.10.2.1. Terrain Texturing viewport context menu

Accessed by right-clicking the viewport while the Terrain Texture Tool toolbar button () is selected, it contains the following items:

Track cursor^A

Determines whether the Chunk Textures panel^B should be automatically updated with texture information on the chunk under the cursor.

Please note that this option will update the information on the Chunk Textures panel, but will not automatically activate it.
Manage textures^A

Displays/activates the Chunk Textures panel^B, already updated with texture information on the chunk under the cursor (for details, see Chunk Textures panel).
Deselect chunk^A

This menu item is only displayed if the Manage Textures menu item has been previously selected.

Deselects the chunk previously selected by the Manage Textures menu item, and which is currently displayed in the Chunk Textures panel.
Select texture for painting
- List of textures under the mouse cursor^C

  Changes the active texture to the one selected in this sub-menu.^D
Select texture and opacity for painting
- List of textures under the mouse cursor (with Opacity in parenthesis)^C

  Changes the active texture to the one selected in this sub-menu^D, and sets the Opacity field to the value displayed in parenthesis in this sub-menu.
Select texture for mask
- List of textures under the mouse cursor^C

  This enables the Texture mask in the Terrain Textures panel and sets the mask texture to the one selected in this sub-menu. The Include Projection and Invert Texture Mask check boxes are turned off. Subsequent painting will replace any textures selected in the sub-menu with the Active Texture.
Select texture and projection for mask
- List of textures under the mouse cursor^C

  This enables the Texture mask in the Terrain Textures panel and sets the mask texture to the one selected in this sub-menu. The Invert Texture Mask check box is turned off. The Include Projection check box is turned on and the Yaw, Pitch, Roll and U, V fields are set to match the yaw, pitch, roll, u and v-scale of the texture selected in the sub-menu. Subsequent painting will replace the texture mask texture with the Active Texture, but only for texture layers whose yaw, pitch, roll, u and v-scales match those of the texture selected in the sub-menu.
Edit projection and scale
- List of textures under the mouse cursor^C

  Performs the same function as the button on top of the Terrain Texturing panel (i.e., it activates the edit projection mode for the texture selected in this sub-menu^D, and activates the texture projection/scale gizmo — for details, see Terrain Texturing gizmos).

A — If the Manage Textures menu item is selected, then the chunk in which it was selected will remain as the current one in the Chunk Textures panel^B, and the Track Cursor option will become temporarily inactive — to reactivate it, select the Deselect Chunk menu item.

B — For details, see Chunk Textures panel.

C — The textures in this sub-menu are listed from most solid to least solid.

D — The Active Texture field is automatically updated with the selected texture.

2.10.2.2. Terrain Texturing keyboard shortcuts

Please note that for completeness, the information provided in this section is also available in Keyboard shortcuts.

The list of World Editor's keyboard shortcuts can be displayed via the Help → Keyboard Shortcuts menu item (for details, see Menu items).

The list below describes the keyboard shortcuts that are unique to this mode:

Alt

Activates the texture sampler tool (indicated by the cursor icon), which samples the dominant texture of the chunk under the cursor — the Active Texture field will be updated accordingly.
Alt+Ctrl

Activates the texture/opacity sampler tool (indicated by the cursor icon), which samples the dominant texture of the chunk under the cursor and its opacity — the Active Texture and Opacity fields will be updated accordingly.
Alt+Shift

Activates the texture projection tool (indicated by the cursor icon — a red- and green-sided square indicates the clicked area), which adjusts the Projection fields to that of the terrain under the cursor.
Shift

Activates the texture projection/scale gizmo (for details, see Terrain Texturing gizmos).

2.10.2.3. .Terrain Texturing mouse controls

Please note that for completeness, the information provided in this section is also available in Mouse controls.

The list of World Editor's mouse controls can be displayed via the Help → Keyboard Shortcuts menu item (for details, see Menu items).

The list below describes the mouse controls that are unique to this mode:

Left button click
- If Alt is pressed

  Samples the dominant texture of the terrain under the cursor — the Active Texture field will be updated accordingly.

  Alt^A activates the texture sampler tool (indicated by the cursor icon).
- If Alt+Ctrl is pressed

  Samples the dominant texture of the terrain under the cursor and its opacity — the Active Texture and Opacity fields will be updated accordingly.

  Alt+Ctrl^A activates the texture/opacity sampler tool (indicated by the cursor icon).
- If Alt+Shift is pressed

  Adjusts the Projection fields to that of the terrain under the cursor.

  Alt+Shift^A activates the texture projection tool (indicated by the cursor icon — a red- and green-sided square indicates the clicked area).
Left button drag

Draws the Active Texture into the terrain, according to the settings specified in the Terrain Texturing panel.
Right button click

Displays the Terrain Texturing panel's context menu (for details, see Terrain Texturing viewport context menu).

A — For details, see Terrain Texturing keyboard shortcuts.

2.10.2.4. Terrain Texturing gizmos

Please note that for completeness, the information provided in this section is also available in Gizmos.

Texture projection/scale gizmo

Activated by pressing Shift while the Terrain Texture toolbar button —— (for details, see Toolbar) is selected, or by clicking the Terrain Texturing panel's button, this gizmo contains the following elements (each updating a different field in the panel):
- Projection gizmo (composed of red, green, and blue circles).
  - Red circle — updates the Roll field.
  - Green circle — updates the Pitch field.
  - Blue circle — updates the Yaw field.
- Scale gizmo (composed of red and green cubes and a red- and green-sided rectangle or grid).
  - Red cube — updates the V field.
  - Green cube — updates the U field.
Texture projection/scale gizmo

2.10.3. Terrain Height panel

This panel contains the options for the Terrain Height tool.

Terrain Height panel

Note

To distinguish from other modes, the brush is a green dotted circle. The brush for explicit height mode (activated by Ctrl) is a green square.

Terrain Height brush

Terrain Explicit Height brush

There are two basic modes of operation for the terrain brush:

Normal use (settings specified on top half of panel)

To gradually increase the height of the terrain, drag over the desired area while holding the left mouse button. To decrease the height, perform the same operation while pressing the middle mouse button (for details, see Mouse controls). Brush strength sets how fast the terrain height will change.

You can use the Shift key to toggle between this tool and the Terrain Filtering tool, which is very useful to allow for quickly smoothing out the terrain as you paint the heights.

Explicit Height (activated by pressing Ctrl — for details, see Keyboard shortcuts).

Terrain can immediately have its height changed to a certain value (absolute explicit height mode) or by a certain value (relative explicit height mode).
- To a certain height:

  To immediately set the height of an area:
  1. Set the Explicit Height field to the desired value.
  2. Select the Absolute radio button.
  3. Drag over the desired area while pressing Ctrl — the brush icon changes to a square, indicating the area that will be affected.
- By a certain amount:

  To gradually increase the height of an area:
  1. Set the Explicit Height field to the desired value.
  2. Select the Relative option button.
  3. Drag over the desired area while pressing Ctrl — the brush icon changes to a circle, indicating the area that will be affected.

The list below describes the fields on this panel:

For gradual changes
- Size

  Sets the size of the brush (in metres) used to apply the specified height onto the terrain.

  The brush size is used both for incremental height changes (when the area affected is indicated by a round brush icon), and absolute height changes (when the area affected is indicated by a square brush icon).

  The [ (square left bracket) and ] (square right bracket) keys^A decrease and increase the size of the brush, respectively.
- Strength

  Sets the strength of the brush when incrementally applying the specified height to the terrain area underneath the brush icon.

  As you hold the left mouse button, the height is gradually incremented to the area indicated by the round brush icon. Small Strength values cause the height to be incremented slowly, while the opposite happens for big Strength values.

  Alt+[ (square left bracket) and Alt+] (square right bracket) keys^A decrease and increase the strength of the brush, respectively.
- Brush mode

  How affected terrain should change its shape.
  - Flat

    Brush's strength does not fall off until it reaches its edge. This results in plateaus with sharp cliff transitions.
  - Linear

    Brush's strength falls off linearly away from its centre. Useful for producing pointy triangular heights.
  - Curve

    Brush's strength falls off gradually away from its centre. This produces more rounded, softer heights.
  - Average

    This mode samples the terrain height at the cursor position and flattens the area around it to that height. This mode is particularly useful for creating roads, paths, terraces and other terrain features.
For immediate changes(activated by Ctrl^A key)
- Explicit height

  Number of metres by which to change affected terrain.
- Mode

  Determines whether terrain height should be set to Explicit Height, or incremented by it.
  - Absolute

    Sets terrain height to Explicit Height when mouse is dragged over the area while Ctrl^A is pressed.
  - Relative

    Increases terrain height by Explicit Height when mouse is dragged over the area while Ctrl^A is pressed.

A — For details, see Keyboard shortcuts.

2.10.4. Terrain Filtering panel

Note

To distinguish from other modes, the brush is a cyan dotted circle.

Terrain Filtering brush

This panel contains options for the terrain filter brush. The brush applies filtering operations to the terrain height. Each filter is a convolution kernel of the type often found in image editing software.

Filters give you the ability to make adjustments to the terrain, with a mechanism similar to the height-sculpting tool.

The most commonly used filters are the smooth ones. They help smooth the terrain, and reduce the jagged polygon appearance of the terrain.

For more details on filters, see the document Content Creation Manual's lesson Sculpt Terrain → Adding refinement filters. (document is accessed by pressing F1 or by selecting the Help → Content Creation menu item — for details, see Menu items).

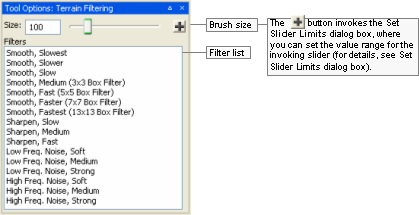

Terrain Filtering panel

The list below describes the fields on this panel:

Size

Sets the size of the brush (in metres) used to apply the chosen filter to the terrain area underneath the brush icon.

The [ (square left bracket) and ] (square right bracket) keys^A decrease and increase the size of the brush, respectively.
Filter list

List of filters available for adjusting the terrain.

You can use the Shift key to toggle between this tool and the Terrain Height tool, which is very useful to allow for quickly smoothing out the terrain as you paint the heights.

A — For details, see Keyboard shortcuts.

2.10.5. Terrain Mesh Cut/Repair panel

Note

To distinguish from other modes, the brush is a green square.

Terrain Mesh Cut/Repair brush

This panel allows you to cut or repair holes in the terrain.

Holes in the terrain are especially useful for cutting out the area underneath shells so that the shell geometry does not z-fight with the terrain. It can also be used to cut entrances to underground shells.

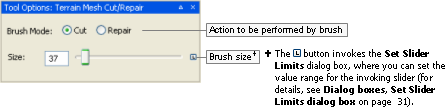

Terrain Mesh Cut/Repair panel

The list below describes the fields on this panel:

Brush mode

Action to be performed with the brush on the terrain underneath it.
- Cut

  Removes the terrain under the brush.
- Repair

  Restores the terrain under the brush.
You can also use the Shift key to toggle between Cut and Repair.
Size

Sets the size of the brush (in metres) used to apply the chosen filter to the terrain area underneath the brush icon.

The [ (square left bracket) and ] (square right bracket) keys^A decrease and increase the size of the brush, respectively.

A — For details, see Keyboard shortcuts.

2.10.6. Terrain Import/Export panel

This panel allows the user to import terrain height data from other tools, such as PhotoShop and WorldMachine, and to tweak how it should be applied to selected area.

It also allows the user to export terrain height data of the selected area.

Terrain Import/Export panel

The list below describes the fields on this panel:

Import

Opens the Open dialog box, where you can specify the terrain height map file to be imported.

Accepted extensions are:
- Greyscale heightmaps — .r16, .raw, .bmp
- Terragen files — .ter
- DTED2 files — .dt2
Current file

Terrain heightmap file to be imported.
Export

Opens the Save As dialog box, where you can specify the terrain heightmap file to which export height data about the selected area. Accepted extensions are:
- Bitmap files (.bmp)
- Raw files (.r16, .raw)
- Terragen files (.ter)
Note

If you are planning to use WorldMachine to open the exported file, then please export it as a .raw, since WorldMachine cannot read .r16 files correctly.
Height

Minimum and maximum height of imported terrain.
- Min, Max

  Height of lowest and highest points in imported terrain map.

  If the Absolute heights check box is selected, then all points in the imported map will have their heights adjusted to correspond to the Min and Max values.

  When Current File is specified via the Import button, then Min is automatically set to 0.
Absolute heights

Determines whether the minimum and maximum heights in the imported file(s) should be adjusted to the values in the Height fields.

This field is especially useful when you want importing multiple files for areas next to one another. For example, suppose you have two RAW files that are to be placed next to one another — one with a mountain range and the other with a plain. If this check box is selected, and the Height field's Min value is set to the lowest point in the plain, and the Height field's Max value is set to the highest point in the mountains, then importing the two areas will result in terrain without seams. If this check box is cleared, then the maximum height of the plain will be the same as the maximum height of the mountains.
Strength

Percentage to apply to height in each point of map being imported when calculating result.
Mode

Terrain import mode.

Contains the following options:
- Replace

  Replaces the current terrain with the one being imported.
- Additive

  For each point in terrain, height is added to the one in map being imported.
- Subtractive

  For each point in terrain, height is subtracted from the one in map being imported.
- Overlay

  Finds the median height in map being imported. Then, considering this median height as being 0 metres high, applies the Additive mode.
- Minimum

  For each point in terrain, height is set to the one in map being imported, if it is lower than the one in current map.
- Maximum

  For each point in terrain, height is set to the one in map being imported, if it is higher than the one in current map.
Map buttons

Affect the map being imported.
- Rotates map 90° counter-clockwise.
- Rotates map 90° clockwise.
- Flips map horizontally.
- Flips map vertically.
- Inverts colours in map.
- Renormalises colours in map, to reflect changes to Height.

  If minimum and maximum heights are changed via the Height field, the colours of map being imported will be out-of-date, until this button is clicked.
Place

Imports the selected map.
Cancel

Cancels the import.
Hand drawn map

Changes the level of transparency applied to the world's hand drawn map layer that is rendered over the world's game map.

This allows users to compare between the world as initially specified by the game designer (Hand Drawn Map), and the one implemented by the world builders (Calculated Map).

2.10.7. Project panel

This panel gives you access to multi-user editing of the world, implemented by the Lock Server (for details, see Lock Server (BWLockD)).

It also allows you to quickly navigate through large worlds by clicking the desired area with the mouse's middle button or scroll wheel (for details on mouse controls while in Project View mode, see Mouse controls).

Project panel

The list below describes the fields on this panel:

Message

Description of the changes to the world.
Lock selected chunks

Tries to obtain an exclusive lock of the region selected on the map.

Locking a selection is useful for multi-user editing of the world, as it prevents two people from working in the same area.

For details, see Locking an area.
Update all

Reads all space files from the server and updates the world.
Commit all changes

Writes to the repository all changes made to the world.

After committing, other users will be able to see your changes.
Keep locks on commit

Toggles the retention of exclusive locks after committing your changes.
Discard all changes

Rejects the changes you made to the world, overwriting them with current version.
Keep locks on discard

Toggles the retention of exclusive locks after discarding your changes.
Hand drawn map vs. Calculated map

Changes the level of transparency applied to the world's hand drawn map layer that is rendered over the world's game map.

This allows users to compare between the world as initially specified by the game designer (Hand Drawn Map), and the one implemented by the world builders (Calculated Map).

2.10.8. Asset Browser panel

This panel gives access to assets through the Asset Browser, an interface that is available in World Editor, Model Editor, and Particle Editor. For details, see Asset Browser.

It also allows you to choose how objects should be placed in the world.

Asset Browser panel

The list below describes the fields on this panel:

UAL fields

For details, see Asset Browser.

The interaction between the different BigWorld asset types and World Editor via the Asset Browser is described in the sections below.

To place an asset in the world:

Drag its thumbnail in the Asset List and drop it in the viewport.

— or —
Select its thumbnail in the Asset List, place the mouse pointer in the desired location in the world, then press Enter (for details, see Keyboard shortcuts).

2.10.8.1. Drag-and-drop

Drag-and-drop operation is specific to the tool that implements it, and the type of asset being dragged, as described in the table below (asset types are listed in the order in which they appear in the Asset Tree):

Asset type	Drop location^A	Effect
Models	3D Viewport	Places the dragged asset in the space.
Shells
Trees
Prefabs
Entities
User Data Objects
Lights
Particles
Misc
Textures	Terrain Texturing panel's Active Texture or Mask Texture fields.	If dropped onto the Active Texture then the texture becomes the texture used when painting. If dropped onto the Mask Texture then the texture becomes the texture replace when painting.
Brushes	Terrain Texturing panel.	Changes the current terrain painting brush to the one in the brush file.
Post-Processing Effects	Post-Processing panel's graph view	Adds the Effect and its phases into the post-processing chain at the drop position.
Post-Processing Phases	Post-Processing panel's graph view	Adds the Phase into a post-processing Effect in the chain at the drop position.
Post-Processing Textures	Post-Processing panel's graph view or properties	If dragged on top of a Phase node in the graph view, a popup appears showing the texture properties for the Phase, and you can drop the texture onto one of these properties. It can also be dropped over a texture property of the selected Phase in the properties area.
Post-Processing Render Targets	Post-Processing panel's graph view or properties	If dragged on top of a Phase node in the graph view, a popup appears showing the render target and texture properties for the Phase, and you can drop the render target onto one of these properties. It can also be dropped over a render target or texture property of the selected Phase in the properties area.
Post-Processing FX Files	Post-Processing panel's graph view or properties	If dragged on top of a Phase node in the graph view, a popup appears showing the FX properties for the Phase, and you can drop the FX file onto one of these properties. It can also be dropped over an FX property of the selected Phase in the properties area.

Drag-and-drop operation in World Editor's Asset Browser panel

A — If the asset file is dropped in the Favourites special virtual folder, then it is added to that folder. For details, see Asset file.

2.10.8.2. Virtual folders

Defined in Asset Browser's configuration file (for details, see Customisation), virtual folders list files of a specific asset type.

For details on the listed asset types, see Assets.

2.10.9. Scene Browser panel

This panel provides functionality for easy listing, searching, selecting and managing of the objects that are currently loaded in the space. This panel provides the following features:

Browse the list of objects currently loaded in the space, sorted by any column or property.
View the list of objects in collapsible groups, grouped by chunk, asset type, file path, number of triangles, number of primitive calls, etc.
Easily select objects in the space by selecting items in the Scene Browser list.
Search for objects in the space, by searching in some or all properties of the objects, using multiple keywords and/or DOS-style wild cards.
Zoom to an object from the list.
Configure which columns or properties to view, and save different configurations as presets.
Hide or Unhide objects in the space, one by one, to improve editing of complex spaces.
Freeze or Unfreeze objects in the space, one by one, to avoid modifying objects accidentally.
Toggle boolean properties of one item or the whole selection with a single click. For example, it allows to change properties such as "casts shadow" and "reflection visible", or the hidden or frozen state, with a single click.

More details follow each of the screen shots below.

Browsing and Selecting:

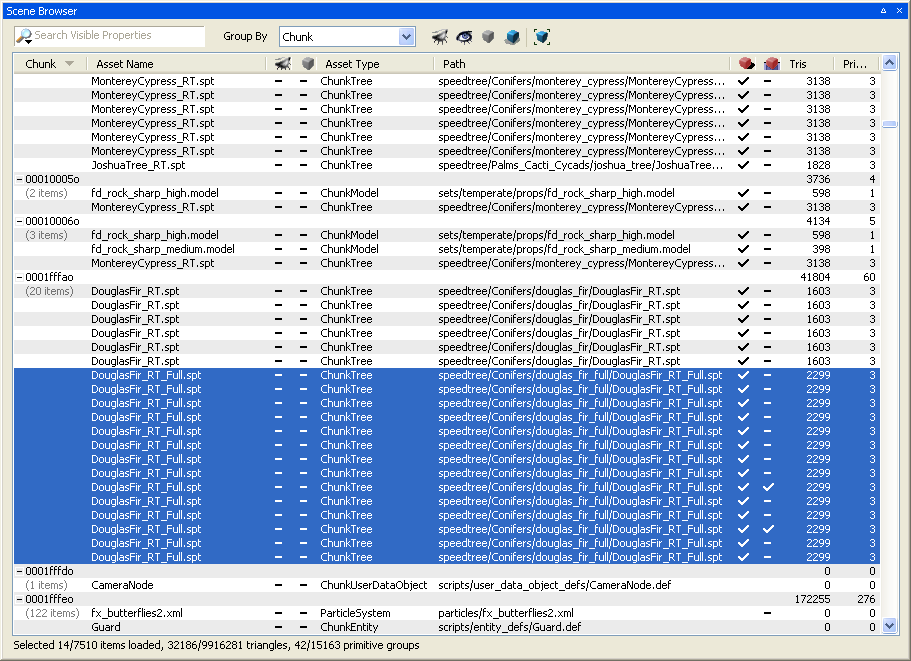

Scene Browser Panel - Selecting Objects

This screen shot shows the elements of the Scene Browser panel. On the top of the panel we see the search field, the grouping drop-down list, and the tool bar, taking most of the panel's area is the object list, and at the bottom is the status bar. The tool bar includes buttons to hide, unhide, freeze, unfreeze and auto-zoom to object:

Hide / Unhide: Allow temporarily hiding objects in order to simplify editing of complex scenes. Hidden objects cannot be selected or seen in the 3D view, but they can be seen in the Scene Browser. The hidden state is an editor-only state, and will not have any effect on the client engine or the server.
Freeze / Unfreeze: Allow temporarily freezing objects to avoid accidentally modifying it. Frozen objects cannot be selected or modified in the 3D view, but they can be selected in the Scene Browser. The frozen state is an editor-only state, and will not have any effect on the client engine or the server.
Auto-zoom: When enabled, it will zoom to an object as soon as it is selected in the Scene Browser list. When disabled, the user can still zoom to objects by double-clicking or right-clicking on the list.

Selections can be made using the standard selection keys and click combinations, such as Ctrl + click to add/remove to the selection, Shift + click to select a range of items, and so on. Because the Scene Browser supports searching and sorting, it makes it the ideal as an alternative view for selecting items. The screen shot shows the objects grouped by chunk. The search and grouping functionalities will be discussed next.

Searching:

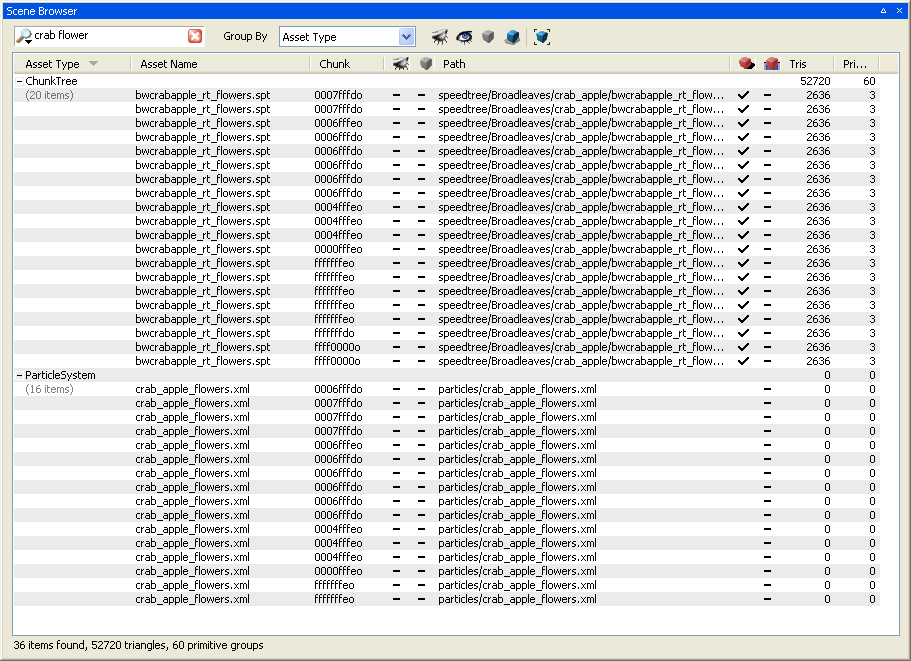

Scene Browser Panel - Searching

In this screen shot, the keywords "crab" and "flower" have been typed into the search field in the top-left of the panel. The search results are quickly shown down in the list, and when specifying multiple keywords, separated by a space, the Scene Browser searches for objects that match all the keywords in the field. Additionally, it is possible to use DOS-style wild cards, using the wild card characters "*" and "?". The search is matched against one or more of the object properties, depending on the search filter selected (see the next screen shot).

Search Filters:

Scene Browser Panel - Search Filters

By clicking on the magnifying glass icon, the user can select one of the different search options, to search in the visible properties only, in all properties, or in one of the built-in common properties.

Grouping:

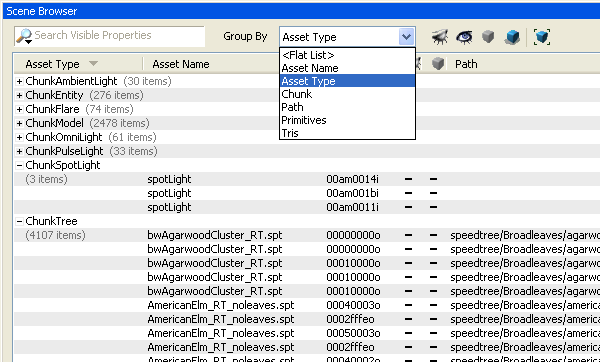

Scene Browser Panel - Grouping

The list can be viewed as a flat list, sorted by any column or property, or it can be viewed with objects grouped by one of the grouping criteria provided in the "Group By" drop-down list. In the screen shot, the list is being grouped by "Asset Type". Groups can be collapsed or expanded, and show some basic statistics for the group, such as the number of items in the group, the number of triangles used by the group, and the number of primitive calls.

Columns:

Scene Browser Panel - Column Visibility

At the top of the list is a header containing the column names for the properties being shown in the list. These columns are generated from the object properties. Right-clicking on the column header displays the columns menu. This menu allows for showing only the columns that are of interest to the user. The common columns are listed first, then the asset type specific columns below it. After editing the column visibility, the user can just click outside the menu, or click the "Close" menu item at the bottom to close it.

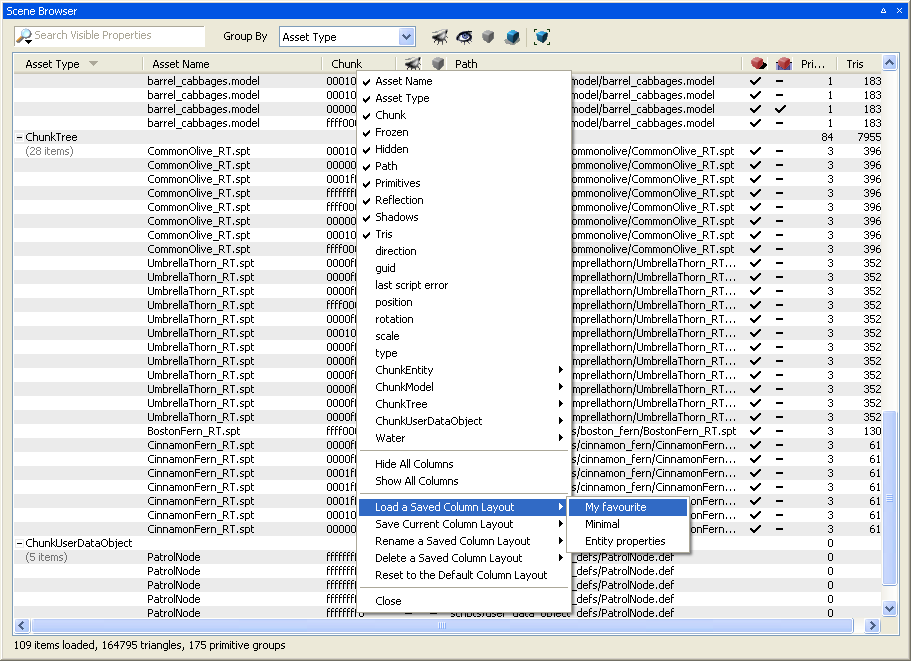

Scene Browser Panel - Column Layouts

It is also possible to save and load column layouts In the columns menu. The user can load a previously saved layout, save the current layout to a new layout file, save the current layout on top of a preexisting layout, rename or delete previously saved layouts, or simply reset the current layout to the default layout. This allows the user to have different sets of columns depending on the kind of world building he or she is doing.

Context Menus:

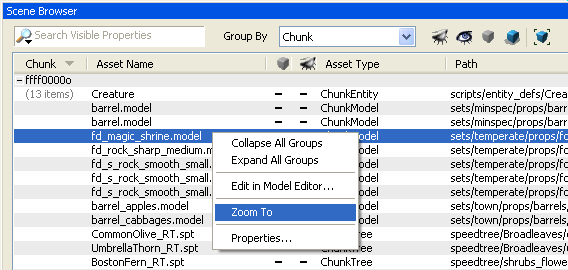

Scene Browser Panel - List Context Menu

A context menu is also displayed when right-clicking on an object, displaying the same menu items as the context menu of the 3D view, but with the additional option to zoom to the item in the 3D view. Also, it displays menu items to collapse or expand all groups.

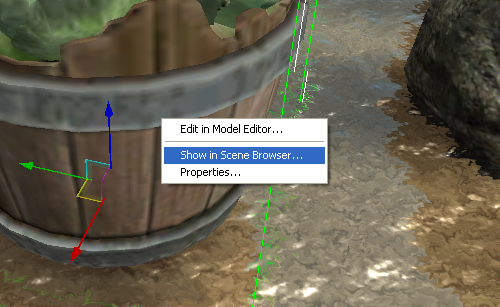

Scene Browser Panel - 3D View Context Menu

In the 3D view, an additional option has also been added to the context menu which allows finding the selected object inside the Scene Browser's list.

Additional Notes:

The Scene Browser works on the currently loaded objects only. The number of objects loaded depends on how far the far plane is set, but it's important to keep in mind that a large value for the far plane will require too much memory, depending on the complexity of the space.
There can be a delay from when an object is loaded, unloaded, or one of its properties is modified, and when the Scene Browser list reflects the change. This is by design, to keep the performance of the application as unaffected by the Scene Browser as possible.

2.10.10. Post-Processing panel

This panel allows creating, editing and previewing post-processing effects that can be later used in the game.

The panel itself is divided in three main areas, as shown in the following image:

Post-Processing Panel - The Three Main Areas

Post-Processing Chains Area:

Contains the list of available post-processing chains and buttons for performing actions specific to post-processing chains editing.

In the chains list, there is a special item representing the system chain, called the Default Chain. When this chain is selected, it allows other subsystems to modify the post-processing chain as they would in the game. For example, changing the Post-Processing graphics setting in the Options panel will set a completely different chain depending on the setting chosen, and changing the weather in the Weather panel will make slight modifications to the system chain to better represent the weather selected.

The action buttons are, from top to bottom:

New: Creates a new chain.
Rename: Renames the currently selected chain.
Duplicate: Copies the currently selected chain into a new chain.
Delete: Deletes the selected chain
Save: Saves changes made to the currently selected chain.
Discard Changes: Brings the chain back to how it was before being modified.

By default, chains are saved as .ppchain files into the bigworld\res\system\post_processing\chains folder. If necessary, the chains folder can be changed by adding the tag <chainsFolder> inside a <post_processing> tag, containing the desired path, in World Editor's options.xml file.

Graph view and Tool bar Area:

At the top of this area is a small tool bar that contains summary information about the current chain and three action buttons. The three zoom buttons allow for zooming in, zooming out, and going back to the default zoom respectively. The Preview button toggles previewing of each Phase's result in-place. The Profiling button toggles measuring the time spent by the post-processing chain in the GPU. Important: Please note that World Editor's performance will decrease when using the Preview or Profiling modes. The Layout button cycles through the different area arrangements available, to help improve the panel's usability depending on the panel's proportions. The Delete All button removes all the Effects and Phases from the current chain (will ask for confirmation first).

Bellow the tool bar is the chain graph view, which shows the different stages in the current post-processing chain in a graphic way. Each stage is called an Effect (blue nodes), and each Effect can contain stages, each called a Phase (green nodes). The post-processing engine will execute each Phase from each Effect, going from top to bottom and from left to right.

These are the ways you can interact with the graph view:

Selected an Effect or Phase: Click on an Effect or Phase to select it, showing its properties in the Properties area.
Pan: If you press the left mouse button on the background of the view and hold it down, you can move the mouse to pan the nodes in the view. You can also press space before pressing the mouse down on top of a node to pan, which is useful when the view is too small and doesn't have background areas in view.
Zoom In/Out: Use the mouse wheel to zoom in or out into the view, making the nodes bigger. This is particularly useful when in Preview mode .
Delete an Effect or Phase: When the mouse cursor is positioned on top of an Effect or Phase, a red close button appears in the top right corner of the node. Click it to delete the Effect or Phase.
Enable or Disable an Effect: You can click the button on the bottom right corner of the Effect node to enable or disable that Effect in the chain. Having an Effect disabled might make sense, for example, if that effect will be turned on by script in the game (a grenade explosion, a particular bloom effect, etc).
Rearrange Effects: Drag and drop can be used to change the order of Effects in the chain.
Rearrange Phases: Drag and drop can also be used to change the position of a Phase in an Effect, or to move the Phase into another Effect.
Add an Effect or Phase: It's possible to add a new Effect or a new Phase to an Effect by dragging the desired Effect or Phase from the Asset Browser's Post-Processing Effects or Post-Processing Phases folders respectively.
Clone an Effect or Phase: Drag and drop while holding the CTRL key.
Assign a Render Target, a Texture or an FX file to a Phase: Simply drag a render target, a texture or an fx file from the Asset Browser over a Phase. Before you release the mouse button, a pop-up menu appears displaying the Phase's properties that can receive the dragged asset.
Assign a Phase's output Render Target to another Phase: Simply drag the handle next to the Phase's output render target name on top of the desired destination Phase, and before you release the mouse button, a pop-up menu appears displaying the Phase's properties that can receive the render target.

Properties Area:

Allows editing the properties of the currently selected Effect or Phase in the graph view. Effects and Phases properties are discussed below:

Effect properties:

All Effects have only two properties, Effect Name and Bypass. The Effect Name is used only as a label in the editor, and won't necessarily affect its usage in the game. The Bypass property is a vector of four floats that determines if the Effect is enabled and if it should be applied during rendering or not. At the moment, this value is tied with the Bypass button on the bottom right corner of the node , and only the alpha value is used (0 for disabled or non 0 for enabled).
Phase properties:

There are several different types of Phases, and each type has its own set of properties that can be defined in either Python or C++, but a few deserve special attention:
- Render Target: Contains the name of the output render target for the Phase. This render target can be filled in by copy & paste from another Phase's Render Target field, or can be dragged from the Asset Browser's Post-Processing Render Targets folder. Render Targets are defined in script by the game programmers beforehand. A special render target identified as "backBuffer" represents the screen's back buffer.
- Clear Render Target: If set to true, the output render target is cleared before applying the Phase's result. If set to false, the results are accumulated.
- FX File: Some Phases have an associated DirectX .fx file which contains the shader code to perform the desired processing. The user can type it in, browse for it using a standard file open dialog, or can drag it from the Asset Browser's Post-Processing FX Files folder.
- Source Blend and Destination Blend: Allows choosing the desired blending modes for the Phase.
- inputTexture: Some phases contain one or more fields for textures and/or render targets to be used as inputs by the Phase's shader. In most cases, the user will want to use the previous Phase's Render Target output as the input texture for the Phase, but in general this field can be set to any Render Target or texture. For example, a clever post-processing chain will have a down sampling Effect which outputs to an internal render target, and this render target can then be used one or more times as input in Phases of other Effects (such as the Bloom in the default chain).
- alpha, additionalAlpha: These field control how much of the Phase's processing is actually blended into the output render target. In some cases an Effect won't have any visible impact on the screen, even when the Bypass button is on, because the alpha value is 0.
Care has been taken into giving all properties sensible names and informative tool-tips, so they are self explanatory. It's also recommended that you study the system's default chain to understand better how specific Phase properties are set.

If custom Phases or Render Targets are needed in addition to the included ones, your client engine programmer will have to add them by editing the post-processing scripts. Once the artist has created a set of chains to be used in the game, the game programmer can load these chains when needed from the game engine. For more information, see the Client Programming Guide.

2.10.11. Properties panel

This panel allows you to edit the properties for the currently selected item or group of items (except for chunk properties). Note that this action will flag the current chunk as dirty.

The list of displayed properties depends on the item selected — for details, see Client Programming Guide's section 3D Engine (Moo) → EffectMaterial → Artist-editable/tweakable variables.

Example of an entity's properties

Example of a model's properties

Common properties when multiple objects are selected

The list below describes some of the fields that appear on this panel:

Object name

Name of the selected object.
Property list
- Animation

  List of animations specified for the model in the .model file (for details on this file's grammar, see the document File Grammar Guide's section .model).

  Value is set to the animation currently being played.
- Animation speed

  Speed of the animation being currently played.
- Chunk

  Chunk where the item is located.
- Client only

  Determines that the entity will not exist on the server, and will not have cell nor base scripts.

  For details, see the document Client Programming Guide's section Entities → Entity scripts.
- Colour

  RGB colour of the selected item, in hexadecimal format.
- Cone angle

  Sets the angle of the cone of light generated by spot light.

  The angle at which the light is placed in relation the ground or model affects its intensity.

  Available only for spot lights.
- Dynamic

  Specifies that light should be applied to dynamic, i.e., moving objects.

  Available only for directional lights, omni lights, and spot lights.
- Direction pitch, Direction yaw, Direction roll

  Pitch, yaw, and roll of direction of the light.

  Available only for directional lights and spot lights.
- Inner radius

  Sets the area over which the light will be at full intensity.

  Available only for omni lights and spot lights.
- Model name

  Model file (for details on this file's grammar, see the document File Grammar Guide's section .model).
- Multiplier

  Sets the multiplier for the RGB value of the colour.

  The RGB values will be multiplied by the value set for this field, effectively making the item brighter.

  Available only for lights.
- Outer radius

  Sets the total area influenced by light.

  The area starting at Inner Radius will have light at full intensity, which will be faded away until it is completely off when it reaches Outer Radius.

  Available only for omni lights and spot lights.
- Outside only

  Specifies whether the object can only be placed on outside chunks.

  If an object placed in an inside chunk has this property set to true, then World Editor will move it to a suitable outside chunk.

  This property is used in cases when a model is to be rendered from outdoors, and acts as a facade for an indoor shell. This prevents the model from being recognised as belonging to the indoor shell, and hence being lit as such.

  The exterior of a house that surrounds an indoor shell is a good example of when this property would be used.
- Position.x, Position.y, Position.z

  Position of the item along the respective axis.
- Rotation pitch, Rotation yaw, Rotation roll

  Pitch, yaw, and roll of the item in its currently placement in the world.
- Scale.x, Scale.y, Scale.z

  Scale in which to draw the item along the respective axis.
- Specular

  Specifies that light should be applied to materials with a specular map specified.

  Available only for directional lights, omni lights, and spot lights.
- Static

  Specifies that light should be applied to static, i.e., scene objects.

  Available only for directional lights, omni lights, and spot lights.
- Colour adjust

  It contains the following fields:
  - Red,Green,Blue

    Sets the red, green, and blue components of the colour, respectively.
  - Multiplier

    Value to multiply colour's RGB value by.

    This affects the overall luminosity of a light without affecting its hue.

    Available only for omni lights and spot lights.

2.10.12. Chunk Textures panel

This panel allows you to check which textures are being used on a chunk, thus allowing you to better manage the existing texture layers painted onto it.

For more details on managing chunks' terrain textures, see the document Content Creation Manual's lesson Create and Apply Terrain Texture Maps.

Chunk Textures panel

The list below describes the fields on this panel:

Show when the Terrain Texturing tool is activated

Determines whether this panel should be activated/displayed whenever the Terrain Texture Tool —— toolbar button is clicked.
Chunk

ID of the chunk which texture information is being displayed.
- /

  Determines if World Editor should automatically display texture information from the chunk under the cursor.
- /

  Determines if World Editor should outline the chunk under the cursor.
Texture management
- Maximum textures per chunk warning

  Number of textures per chunk above which a warning message should be displayed in the offending chunks.

  The warning will be displayed in the chunk as illustrated in the image below.
  - /

    Determines whether World Editor should display the "maximum texture per chunk" warning.
  Example of a chunk displaying the "maximum textures per chunk" warning
Texture thumbnail/mask

Thumbnails of the texture used in the chunk under the cursor, next to the mask indicating the strength in which it is used.

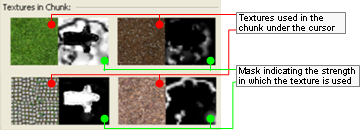

Texture thumbnail/mask information

The following keys can be used with this panel:

Left button click

Adds the texture under the mouse cursor to the selection.
Left button click + CTRL key

Toggles the texture under the mouse cursor into or out of the selection.
Space key

Merges the selected textures into the last texture selected. The last texture selected has a slightly thicker red rectangle around it.
Delete key

Deletes the selected textures. They are replaced by the texture that was not selected and contributes the most to the chunk.
Right button click

Displays the Chunk Textures panel's context menu as below.

The Chunk Textures panel's context menu

The menu items are as follows:
- Use Texture

  Select the texture as the Active Texture on the Terrain Texturing panel.
- Edit Projection and Scale

  Activates the edit projection mode of the Terrain Texturing panel with the selected texture being the edited texture layer. See .Terrain Texturing mouse controls
- Set as Texture Mask

  Selects the texture as the texture mask on the Terrain Texturing panel.
- Remove Texture(s)

  Deletes the selected textures. They are replaced by the texture that was not selected and contributes the most to the chunk. This is the same as pressing the Delete key.
- Merge Textures

  Merges the selected textures into the last texture selected. The last texture selected has a slightly thicker red rectangle around it. This is the same as pressing the Space key.

2.10.13. General Options panel

This panel allows you to specify the scene elements that should be rendered in World Editor, and general settings such as far plane and the kind of lighting to render.

General Options panel

The list below describes the fields on this panel:

Show

Group of settings configuring the visibility of items in the world.
- Game Objects

  Toggles the rendering of Game Objects.
  - Entities

    Toggles the rendering of Entities.
  - User Data Objects

    Toggles the rendering of User Data Objects and the old patrol path graphs.
- Scenery

  Toggles the rendering of scenery items in the world.
  - Wireframe

    Toggles the rendering of scenery items as wireframe.
  - Particles

    Toggles the rendering of particle systems.
  - BSP

    Toggles the rendering of objects' BSPs.
  - Particle system bounding boxes

    Toggles the rendering of particle systems' bounding boxes.
  - Water

    Toggles the rendering of water items (for details on water properties, see the document Content Creation Manual's lesson Add Water to the World).

    Reflection,Simulation

    Toggles the respective feature for all bodies of water in the world.

    For an item to be reflected in a body of water and suffer refraction, its property reflection visible must be set to true in the Properties panel (for details, see Properties panel).
  - Shells

    Toggles the rendering of shells in the world.

    Game visibility

    Toggles the use of the portal visibility algorithm by the shell.

    When selected, shells will draw the portal system exactly as when running the game. When cleared, shells in the viewing frustum will draw without using the portal visibility algorithm.

    It is recommended to clear this option when building shell systems and placing lighting and objects in them. If you require rendering performance improvements whilst building the world, then select this option when you are not working on shells. It will it help World Editor to render the world more quickly.
- Proxies

  Toggles the rendering of proxy models which are a physical representation of lights and particle systems.
  - Editor proxies

    Toggles the display of proxy models defined for models in Model Editor.^A
  - Particles

    Toggles the display of all particle systems proxy model. It also expands to give you the option of large or small proxy model rendering.
  - Lights

    Toggles the rendering of lights of the respective type. Each light type also expands to give you the option of large or small proxy model rendering.
- Terrain

  Toggles the rendering of the terrain.
  - Wireframe

    Toggles the rendering of scenery items as wireframe.
  - Dynamic Level of Detail

    Toggles the rendering of terrain with constant LOD or dynamic LOD.
- Environment

  Toggles the rendering of all selected environment items.
  - Sky

    Toggles the rendering of sky gradient dome and stars, according to settings specified in the Environment Options panel.^A
  - Sky Boxes

    Toggles the rendering of both the space skyboxes and the weather skyboxes, according to settings specified in the Environment Options panel.^A
  - Sun and moon

    Toggles the drawing of the sun and the moon, according to settings specified in the Environment Options panel's Sun/Moon Inclination group box.^A
  - Fog

    Toggles the drawing of fog, according to settings specified in the Environment Options panel's Sky Box Gradient field.^A

    For details, see the document Content Creation Manual's lesson Fog Colour.
- Heaven and earth portals

  Toggles the visibility of the heaven and earth portals used by chunks.

  This is especially useful when building terrain, since you will be able to see the maximum and minimum heights allowed by outdoor chunks. Generally, you should not raise or lower the terrain beyond the heaven and earth portals.
- Shade read-only areas

  Toggles the shading in red of read-only areas.

  When multiple users are working on the same space, World Editor is connected to the Lock Server (bwlockd). Only the editable and selectable objects will be displayed in their natural colours. For more details, see Lock Server (BWLockD).
Far plane

Adjusts the far plane. While the value defaults to 500 metres, it is often useful to adjust the far plane to something much farther away while editing the world in World Editor, so you can see more of it at any one time.
Lighting

Lists the option of rendering of lighting in the world.
- Standard

  Lighting should be rendered as it will appear during the game.
- Dynamic

  Dynamic lighting should be rendered.
- Specular

  Specular lighting should be rendered.
Navigation Mesh

The options for visualising the navigation mesh.
- Visible

  Toggles the display of the navigation mesh.
- Girth

  Which navigation mesh to display based on the girth XML file.
Engine graphics settings

Graphics settings to run World Editor with.

These fields are useful for previewing the game in a variety of configurations that the users might run it with.

For details on graphics settings, see the document Client Programming Guide's section 3D Engine (Moo)→Graphics settings.
- Mrt Depth

  Option to enable/disable advanced post processing used for effects such as water deepening and automatic foaming.
- Sky Light Map

  Option to enable/disable cloud shadows.

  For details on cloud shadows, see the document Client Programming Guide's section Terrain→Cloud shadows.
- Terrain Specular

  Option to enable/disabled terrain specular lighting.^B
- Shader Version Cap

  Option to set the shader version (Shader Model 3/Shader Model 2/Shader Model 1/Shader Model 0) available to the engine.
- Texture Quality

  Option to set the quality (High/Medium/Low) of textures rendered by the engine.^C
- Texture Compression

  Option to enable/disable texture compression.^C
- Texture Filtering

  Option to set the texture filtering (Anisotropic 16x/Anisotropic 8x/Anisotropic 4x/Anisotropic 2x/Trilinear/Bileaner/Point).^C
- Morph Vertices

  Option to enable/disable vertex morphing in the engine.

  For details on vertex morphing, see the document Client Programming Guide's section 3D Engine (Moo)→Features→Vertex morphing.
- Terrain LOD

  Option to set the geo-morphing factor (Far/Medium/Near) of the terrain.^B
- Terrain Mesh Resolution

  Option to set the mesh resolution (High/Medium/Low) of the terrain.^B
- Post Processing

  Option to choose the quality level of post-processing effects.

  This options mirrors the client graphics setting, allowing for High,Medium,Low and None. If the 'Default Chain' is selected in the PostProcessing panel, then selecting High,Medium and Low will load the high_graphics_setting.ppchain, medium_graphics_setting.ppchain and low_graphics_setting.ppchain files respectively. If you modify and save these .ppchain files, you will see the results in both World Editor and the client.

  For details on post-processing, see the document Client Programming Guide's section Post Processing, and the document Content Creation Manual's lesson Post Processing.
- Water Quality

  Option to set the quality (High/Medium/Low/Lowest) of the water rendered by the engine.^D
- Water Simulation

  Option to set the quality (High/Low/Off) of the water's simulation.^D
- Flora Density

  Option to set the density (Very High/High/Medium/Low/Off) of flora objects rendered in the game world.

A — For details on defining a proxy for a model, see Object Properties panel.

B — For details on terrain, see the document Client Programming Guide's section Terrain.

C — For details on textures, see the document Client Programming Guide's section 3D Engine (Moo)→Graphics settings.

D — For details on water settings, see the document Client Programming Guide's section Water→Render settings→Setting the quality.

2.10.14. Navigation panel

This panel allows quick navigation to locations in the world, pre-saved or not, and configures player walkthrough mode.

Navigation panel

The list below describes the fields on this panel:

Locations
- Search bar

  Restricts the locations displayed in the list to the ones containing the typed string. The list is refreshed automatically as the string is typed.
- Location list

  List of positions saved on previous sessions.
- Add

  Adds the current camera position to the list.
- Rename

  Renames the selected location.
- Update

  Updates the selected location with the current camera position.
- Remove

  Removes the selected location from the list.
- Move to

  Moves camera to the selected location.
Position
- x,y,z

  Current XYZ position of the camera, dynamically updated by World Editor.
- Move to

  Moves camera to the XYZ position specified by the user.
Chunk
- Chunk ID

  Chunk in which the camera currently is, dynamically updated by World Editor.
- Move to

  Moves camera to the centre of specified chunk.
Player preview mode
- Enabled

  Toggles the player walkthrough mode, in which the camera moves in the world as if attached to the player. This mode can be toggled via ~ (tilde) keyboard shortcut.
- Camera height

  Height of the camera during player walkthrough mode.

2.10.15. Weather Preview panel

This panel allows you to create and edit weather systems, and specify which kind of weather should display in which space.

Weather Preview panel

The list below describes the fields on this panel:

Weather Systems list

List of all available weather systems for your game. Systems are included / excluded from the current space by using the checkboxes next to the system name.
New

Create a new weather system.
Rename

Rename the currently selected system. You can achieve this also by pressing F2 or double-clicking on the system name.
Delete

Delete the currently selected system.
Make Default

Set the current selected weather system as the default weather system for this space.
Sky Boxes list

List of the sky boxes used by the weather system. These can be any .model files, although the .model files should use one of the environment shaders in order to display correctly at the far plane.
Add...

Add a new sky box to the selected weather system. Pressing this button invokes a dialog box allowing you to select a .model file. An easier way to add sky boxes to your weather system is to simply drag and drop them from the Asset Browser.
Delete All

Delete all sky boxes from the list.
Properties

Property editor for all other weather system properties.
Special Effect File

This field accepts any Special Effect XML file. However, the effect file needs to be authored specifically for weather systems - adding an explosion effect here wouldn't make much sense. You can drag and drop files from the Special Effects virtual folder in the Asset Browser.
Rain Amount

How much of the built-in rain effect to play. The built-in rain effect layers 4 sheets of rain texture over the camera, and has a built-in fog emitter.
Sun

How to colourise the time-of-day sunlight (see the Environment page). Setting this value to white will mean the weather system has no effect on the normal sunlight colours. The multiplier field allows you to set a sunlight colour, and then adjust its brightness independently. Note that this allows you to overbrighten the sunlight colour, although on some low-end cards this will not work as desired.
Ambient

Similar to the sun colour above, but affects the Ambient light.
Fog

Colourises the time-of-day fog colour. The 4th field represents the fog density. This is interpreted as 'additional fogging.' The standard fogging value (1.0) reaches the far plane to hide clipping, and tries to not interfere with the rest of the scene too much. Dialing up the density of the fog brings the fog closer to the camera.
Sky Box Fog Response

Specifies how much the skyboxes should respond to any extra fog dialed in via the fog density slider. For any fog value greater than the default of 1.0, a certain amount of that is applied to the sky boxes - this is the sky box fog response value.
Wind Speed

Set the base wind speed for the weather. The wind affects the cloud layers, the flora, the trees, and the particle systems. This X/Z wind speed is in world coordinates, in metres per second.
Wind Gustiness

Set the gustiness of the wind, or, how much the wind varies around the base wind speed value.
Temperature

Sets the base temperature level for the weather system. Currently this value is not used by the default weather system engine.
Bloom Settings

This group sets up the blooming filter to further enhance the mood set by the selected weather system.
Attenuation

This is a colour multiplier that tints the colour of each stage of the bloom/blur filter, thus affecting the final colour of the bloom effect. Since it is applied per-pass to the filter, it is closely linked to the number of passes. With a higher number of passes, the blooming is very sensitive to the colour attenuation values, and so the colour attenuation will need to be fairly close to pure white.
Num Passes

Sets the number of blur passes performed by the bloom filter. While increasing this number does cost in terms of fill-rate, the cost is relatively small because the bloom filter uses quarter-size render targets to perform the blurring passes.
Sensitivity

This value specifies how sensitive the bloom filter is to bright colours on the screen. Setting this to a very low value makes causes the filter to respond to all intensities of colour in the frame buffer, creating more of a blur effect than a blooming one. Higher values cause the filter to react to just the brighter regions of the frame buffer, creating more of a traditional bloom effect. In the underlying bloom filter, the sensitivity is the mathematical exponent used to high-pass filter the back buffer to select the colours used in the blurring passes.
Filter Width

Sets the width, in texels, of the bloom filter kernel. The default value is 1, which provides the best quality effect, but will require a higher number of passes to achieve a large bloom spread. Higher values increase the width of the bloom spread, but if the filter width is too high, you will see fragmentation in the bloom filter as it skips pixels during the blur phase. This fragmentation caused by a higher filter width can be fixed by increasing the number of blurring passes, since it is cumulative effect.

2.10.16. Environment Options panel

This panel allows you to specify environment settings to change world's overall rendering.

Environment Options panel (top)

Environment Options panel (bottom)

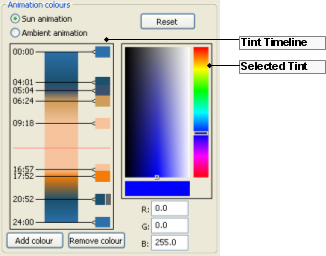

Tint Shader

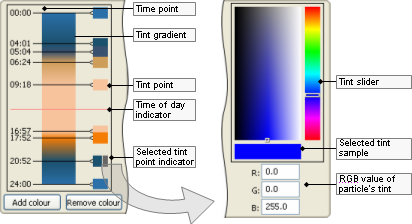

Tint Timeline and Selected Tint

The list below describes the fields on this panel:

Sky bitmaps and gradient
- Sky bitmaps

  List of image files to display as the sky. If more than one file is specified, then they are superimposed in the world. The Weather Systems entry in the list is always there, and cannot be deleted. It refers to the sky boxes in use by whatever Weather System is currently displayed. This item is included in the list so that you can sort the space's sky boxes with respect to the weather system ones.
- Skybox gradient

  File containing time of day x height in the sky gradient information.

  Skybox gradient mechanism
Time Of Day File fields
- Time of day file

  XML file containing the settings for the fields in the following group boxes:
  - Game Options
  - Sun/Moon Inclination
  - Time
  - Animation Colours
- Opens the Open dialog box, where yon can specify the Time Of Day File.
- Open the Saves As dialog box, where you can save the current settings to a new XML time-of-day file.
Game options
- Hour length

  Number of seconds in an hour of game world's time.
- Start time

  Time of day in which the game should start.
Sun/moon inclination
- Sun angle

  Angle formed between sun and the horizon. Value ranges from 0° to 90°.
- Moon angle

  Angle formed between sun and the horizon. Value ranges from 0° to 90°.
Time
- Time of day

  Current time of day in the world.

  This value changes, and can also be changed by dragging Tint Timeline's Time Of Day bar, and by clicking Tint Timeline's Tint Gradient.
Animation colours
- Sun animation

  Selects Tint Shader for sun animation.
- Ambient animation

  Selects Tint Shader for sun animation.
- Reset

  Resets Tint Shader values for selected animation (sun or ambient).

  These values are the same ones used for FantasyDemo.
Tint Timeline
- Time point

  Point of transition between two tints.

  Can be dragged up and down (except the first and last one), with value being automatically updated.
- Tint gradient

  Displays the tint on each Tint Point, and the values in between.

  Clicking the Tint Gradient changes Time Of Day to respective time.
- Tint point

  Tint selected for the time of day.

  Can be dragged up and down (except the first and last one), with value in the timescale being automatically updated.
- Time of day indicator

  Sets the current time of day in the world.

  This bar changes, and can also be changed by Time Of Day slider and by clicking the Tint Gradient.
- Selected tint point indicator

  Indicates which Tint Point is currently selected.

  Selected Tint group is automatically updated to reflect the selected tint values.
Selected tint
- Tint slider/ selector

  Composed of 2 parts:
  - Slider — Colour to be applied to the particle in the selected Time Point.
  - Selector — Luminosity of the colour selected in the slider part of this field.
  The tint might be also be specified in the RGB Value fields.

  The Tint Gradient and Tint Point in the Tint Timeline, and the RGB Values are automatically updated with the values selected.
- Selected tint sample

  Displays the tint selected in Tint Slider/Selector.
- RGB values
  - R, G, B

    Red, green, and blue components of the tint in the selected Time Point.

    The tint might also be specified in the Tint Slider/Selector.

    The Tint Gradient and Tint Point in the Tint Timeline, and the Tint Slider/Selector are automatically updated with the values specified.
- Add colour

  Adds a new Time Point in the Tint Timeline.

  The new Time Point is added on top of the final one, so it is not immediately visible to the user. You have to drag it up in the Tint Timeline before specifying its settings.
- Remove colour

  Deletes the Time Point currently selected in the Tint Timeline. The first and last Time Points cannot be deleted.
Sky file fields
- Sky file

  XML file containing the settings for fields in the Atmospheric Effects group box.
- Opens the Open dialog box, where yon can specify the Sky File.
- Open the Saves As dialog box, where you can save the current settings to a new XML time-of-day file.

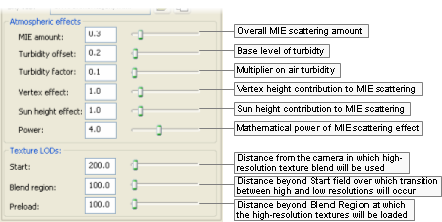

Atmospheric effects

For details on these settings, see the Content Creation Manual's lesson Change Environmental Settings → Changing dynamic environment settings.
- MIE amount

  Overall MIE scattering amount.

  This is the amount of scattering effect, which simulates forward scattering of light as it travels through the atmosphere.
- Turbidity offset

  Base level of turbidity, or amount of suspended particulate matter.

  Proportionally affects MIE scattering effect.
- Turbidity factor

  Multiplier on air turbidity.

  It defines how MIE scattering effect responds to increases in the global fog amount.
- Vertex effect

  Vertex height contribution to MIE scattering.

  The vertex effect gives the scattering an elongated shape at the horizon.
- Sun height effect

  Sun height contribution to MIE scattering.

  The sun height effect decreases the overall amount of the effect when the sun is high in the sky (i.e., noon).
- Power

  Mathematical power of MIE scattering effect.

  It makes the effect look less like a flat shaded circle, and more like a circular gradient with emphasis being put on white nearer the sun.
Texture LODs
- Start

  Distance in metres from the camera in which high-resolution texture blend will be used.

  Higher values will result in better visual results (especially on steep terrain), but will result in higher memory use.

  Recommend value is between 200 and 1,000.
- Blend region

  Distance in metres beyond Start field over which transition between high and low resolutions will occur.

  Recommended value is between 100 and 500.
- Preload

  Distance in metres beyond Blend Region at which the high-resolution textures will be loaded.

  Recommend value is between 100 and 200.

2.10.17. Histogram panel

This panel allows you to gauge the amount of luminance and colour in the scene, giving the world builder the ability to analyse the scene regarding the balance in the distribution of colours across the spectrum.

You can also use F11 (for details, see Keyboard shortcuts) to show the histograms in World Editor's main window — for details, see Histogram console.

Histogram panel

The list below describes the fields on this panel:

Luminance

Distribution of luminance in the current scene.
RGB

Distribution of red, green, and blue colours in the current scene.
- Red, Green, Blue

  Toggles the graphing of the respective colour component in the histograms.
Range

Sets the vertical range ratio of the Luminance and RGB histograms.

A value of 1 causes the histograms to be graphed using the whole vertical size of the panel to plot the maximum values. The value of this field will be multiplied by the value in y-axis, thus augmenting the graphing size of components that would be otherwise too small to be graphed. The series of screenshots below display the RGB histogram being graphed with the following values for Range (respectively): 1, 2, 4, and 8.

Range = 1

Range = 2

Range = 4

Range = 8

2.10.18. BigWorld Messages panel

This panel displays error, debug, and general information messages output by the tool.

To simplify debugging, these messages are also logged to bigworld/tools/worldeditor/worldeditor.log (for details, see Activity logging).

BigWorld Messages panel

The list below describes the fields on this panel:

Show data, Show time, Show priority

Toggles the visibility of the respective column.
Error, Warning, Notice, Assets, Info

Toggles the visibility of the respective type of message.

Please note that the Info check box toggles the visibility of Info, Trace and Debug messages.

Note

Asset errors are listed in bold letters as tree entries.

Those entries can be clicked to reveal the instances of the missing asset — each sub-item acts as a link that moves the view to the bounds of the missing asset.

2.11. Useful notes

The following sections highlight some important details about elements in World Editor.

2.11.1. Chunks

There are two types of chunks in BigWorld:

Outdoor chunks

Have a fixed size of 100x100 metres.
Indoor chunks

Also called shells, have the size and shape determined by the models that represent them.

Each chunk can have any number of chunk items associated with it. For example, indoor chunks may have chunk items such as lights, tables, and chairs, while outdoor chunks may have trees, rocks, or the terrain (the terrain is not a chunk in itself, only a chunk item).

2.11.1.1. Chunk templates

Restricted to indoor chunks, chunk templates are useful to reuse the lighting settings of a shell.

When a shell that for which a chunk template was saved in placed in the world, World Editor automatically places the lights specified by the template in that shell.

To save a chunk as a template, select the Edit → Save Chunk As Template menu item.

2.11.1.2. Adding chunks to a space

Current versions of World Editor do not offer a mechanism to resize an existing space. Instead, what has to be done is to create a new space with the desired dimensions, then move the existing objects to it. There are two ways to do this, one is to copy all the old space's files except space.settings file into the new space's directory. This will mean that old space information will override the new space information for each chunk. The limitation of enlarging the space through this way is you can only enlarge the space with the old space information in the center.

Another way is to resize the space using prefabs. The list below describes each step of this process:

Load the space for which you want to add/delete chunks (if different from current one)
- Select the File → Open Space menu item^A — the Browse For Folder dialog box^B will be displayed. If there are unsaved changes, then the Changed Files dialog box^B will be displayed. Choose the appropriate answer for you case.
- Select the space which size you want to change, then click the Open Space button — the selected space will be loaded.
Select desired world items
- Set the Object panel's^C Selection Filter drop-down list box to All.
- Select the Edit → Select All menu item^A, to select all objects in the space (if you want to enlarge space). Or, select desired chunks and all objects in them by drawing a rectangle around them using mouse dragging.
Save selected world items to a prefab file
- Select the Edit → Save Selection As Prefab menu item^A — the Save As dialog box^B will be displayed.
- Specify the name and folder in which you want to save the file, then click the Save button.
- Select the File → New Space menu item^A — the New Space dialog box^B will be displayed.
- Specify the name of the space and its dimensions, then click the Create button — the new space will be created and loaded.
Import world items from saved prefab file
- In the Asset Browser^D, select the Prefabs virtual folder.
- In the Asset List, select the file saved in step 3.
- Move the mouse over the viewport, then press Enter^E.
- The objects saved on the old space have now been added to the new space. Note: The existing terrain inside the prefab's bound will be replaced by the terrain saved in the prefab. If you put the prefab in the wrong place and want to correct it, you have to undo the placing and place the prefab again.

A — For details, see Menu items.

B — For details, see Dialog boxes.

C — For details, see Object panel.

D — For details, see Asset Browser panel.

E — For details, see Keyboard shortcuts.

2.11.2. Portals

A portal links chunks, allowing traverse and visibility between them. When portals are connected, they become invisible — a complete world should not have visible portals.

For indoor chunks, portals form part of the shell, and can be modified in any 3D package — in World Editor they can be selected, but not changed. Indoor portals are only visible when disconnected from other indoor portals.

A portal in 3ds Max can be flagged as an exit portal, meaning that it will open up to the terrain, rather than to another indoor chunk. Exit portals are not visible in World Editor. When a shell with an exit portal is placed in the world, the chunk in which it is placed creates a new virtual boundary and a new portal to match the now adjacent indoor chunk. Other than this, outdoor chunks have fixed portals to adjacent outdoor chunks which should not be changed — which is why they cannot be selected in World Editor.

Note that the external flag in the properties of a portal is deprecated, although it still causes the portal to be shaded to yellow. But other than that, the flag has no technical effect.

2.11.3. Directional lights for outdoor use only

Directional lights spread an even light over an area, unlike other kinds of light, which spread out from a specific point.

They are useful for things like the sun, whose source is very distant, and whose light needs to affect a large area. As a result, directional lights are not available for indoor chunks, which should use omni and ambient lighting instead.

For more details on the different kind of lights, see Lighting Setup panel.

2.11.4. Potential problems placing models and shells

When a model is placed in World Editor, the centre of its bounding box is used to determine the chunk in which the model will be placed.

This is suitable for most situations — placing an object in a room causes the object to be associated to that room, placing an object outdoors causes the object to be associated with an outdoor chunk.

But it might not be suitable in cases where there is a single indoor shell with an exit portal, and you want to place an enclosing outer wall around that shell. In this case, the wall and the interior shell will be approximately the same size, and will be placed in approximately the same location. In this scenario, World Editor would automatically place the outer walls inside the shell. This would mean that the external walls only get lit by the indoor lights, and would be bound by the visibility rules of that indoor shell's exit portal.

To overcome this problem, models have the outside only flag (accessed via the Properties panel (for details, see Properties panel).

After changing this value to true, World Editor will automatically change the model's location to an outdoor chunk. Additionally, as you move that model around the world, World Editor makes sure that it is never placed in an indoor chunk.

If you have a model that will need to be always designated as outside only, then you can do it by editing the .model file, as in the example below:

<rock.model>
  ...
  <editorOnly>
    ...
    <outsideOnly> true </outsideOnly>
    ...
  </editorOnly>
  ...
</rock.model>

Example file rock.model

Make sure to follow the exact capitalization for the inserted text.

2.11.5. Corrupted space map

If World Editor starts rendering your space with random colours or adding objects by its own accord, then you can force it to regenerate the space map by deleting the cache.

In order to regenerate the space, follow the steps below:

Shut down World Editor.
Browse to the folder containing the space you were working in — <res>/spaces/<space>.
In that folder, delete the files space.thumbnail.dds and space.thumbnail.timestamps.
Restart World Editor.
The space map will be recreated.

If this problem keeps occurring, then please contact the BigWorld support engineers, providing the following information:

Your machine's graphics card
Version of your video drivers.

2.11.6. Creating spaces

To create a new world, the first step is to create a space using the File → New Space menu item.

After that, create a hand-drawn map of the whole world — as simple or as detailed as desired —, making sure that it is to scale. This hand-drawn map will act as a guide for the artists creating the world — they will be able to follow the guidelines in the map for performing task such as choosing the regions to lock for editing.

The bitmap can have any size, as long as it is proportional to your space. For example, if your space is 200x150 chunks, then your bitmap could be 640x480.

Once having drawn the world, save it as space.map.bmp in your newly created space folder and commit it alongside the map texture to the CVS repository.

All files relating to the new space (located in <res>/spaces/<space>) will have to be checked out on the machines that will be editing it with World Editor.

2.11.7. Lock Server (bwlockd) and new spaces

The Lock Server (bwlockd) can work with any new spaces committed to your server without having to be restarted.

For more details on the Lock Server, see Lock Server (BWLockD).

2.11.7.1. Troubleshooting

Errors regarding bwlockd are displayed in the message window. The list below describes the meaning of some of the errors you might come across, and how to correct them:

Unable to connect to bwlockd

Generic error message displayed after any problem with the Lock Server.

Look at the error message above this one to determine the specific problem.
Connect(): Couldn't connect, last error is 10061

The Lock Server is not running, or you have specified an incorrect host or port number in World Editor's configuration file bigworld/tools/worldeditor/options.xml, tag <bwlockd> (for details on this file's grammar, see the document File Grammar Guide's section options.xml → World Editor.)

Make sure that the server is running, the specified host is correct, and the specified port is 8168.
Connect(): Couldn't set lockspace

The space you are currently editing could not be found by the Lock Server.

Make sure that you have chosen the correct space, and that it is checked out on the server, so the Lock Server can find it.

2.11.8. Activity logging

In order to provide a trace of the activities performed by the user, thus simplifying the debug process, all on-screen warning and errors (displayed in the BigWorld Messages panel (for details, see BigWorld Messages panel) are logged to file bigworld/tools/worldeditor/worldeditor.log.

Apart from errors and warning, actions like changing the Object panel's Selection Filter or Locking Mode, or saving the scene, are also logged to file.

The example below illustrates an example of the generated log file.

/------------------------------------------------------------------------\
WorldEditor 1.8 (compiled at Oct 11 2006 at 20:20:16) starting on 11/15/06

Action: entered Object mode
Action: Entering terrain snap mode
Action: Selection Filter: All Lights
Critical: Model not found: sets/temperate/props/maple_substitute.model
Critical: Model not found: sets/temperate/props/stone_a_02.model
Action: Entering obstacle snap mode
Action: Entering XZ snap mode
Action: characters/npc/chicken/chicken.model
Action: Selection Filter: All
Action: Added model
Critical: Saving...
Action: Calculating lighting for 00000026i
Action: Calculating thumbnails for 00000002o
Action: Calculating thumbnails for 00000026i
Action: Saving 00000002o
Action: Saving 00000026i
Critical: Save complete

Example BigWorld log file

	During startup: Settings applied
	During startup: Critical errors
	During session: Settings were changed
	During session: A model was added
	During session: The modified scene was saved

2.11.9. Patrol path editing with User Data Objects

A specific type of User Data Object (UDO) has been implemented, called PatrolNode, that allows the creation and editing of patrol paths (or any other situation that requires a fixed directional graph).

Example patrol path using the PatrolNode user data object

Patrol path graphs consist of a collection of nodes and directional links between them. In addition, entities can support linking to patrol paths.

To create a patrol path graph, click the Asset Browser panel (for details, see Asset Browser panel), then select the User Data Objects virtual folder, and drag the PatrolNode object onto the viewport — this will create the first node in the graph.

Nodes have a special patrol node gizmo, with four selectable areas — two circles and two crosses. The crosses can be used to create more nodes, by clicking and dragging them to the location desired for the new node. A link is automatically created, from the original node to the new one.

To create a link from one node to another, select the first node, then drag the circle area onto the other node. As you drag, the colour of the link changes from red (which means that a link cannot be established at this location) to green (which means that a link can be established at this location) when the cursor is moved over the second node.

By default, links are shown to follow the ground. If either node is in the air however, the link will go in a straight line.

Standard editing operations can be done on nodes — they can be deleted, cloned, and moved.

When the mouse cursor is placed over a link, it will be highlighted with a green box. A context menu will then be available (by right-clicking the link), with the following items:

Delete

Deletes the link.
Swap link direction

Changes the direction of the link.
Both directions

Changes the link type to bi-directional.
Swap link directions (run of links)

Swaps the directions of a run of links^A.
Both directions (run of links)

Changes a run of links^A type to bi-directional.
Split Link

Splits the link at the middle.

A — A run of links includes the current link and goes in each direction until a complete loop is done, a node with only one link going into it is found, or a node with more than one link is found.

To support patrol paths, or to be able to link to any other user data object for that matter, an entity needs to have a UDO_REF type property which allows linking (for details, see the document Server Programming Guide's section Directory Structure for Entity Scripting → The Entity Definition File)

These entities can be linked to a PatrolNode user data object. Such an entity will have a linking gizmo, but only with the two circles (it can only be linked, it cannot create nodes). To associate an entity with a PatrolNode user data object, drag one of the circles to a node in the patrol graph — a link will be drawn from the entity to the node.

For an example of a definition file suitable for patrol paths, see fantasydemo/res/scripts/entity_defs/Guard.def.

The file fantasydemo/res/scripts/cell/Guard.py is a Python script that runs on the server to control guards. It uses PatrolNode based patrol paths to optionally set guards on a patrol path, using the doPatrol method. Note that it also uses the patrolRadius property (set in the definition file) to allow a degree of randomization on the adherence to the path.

2.11.10. Some useful Python scripts

Here we describe some useful Python scripts that are built into World Editor. The scripts should be used with caution - they will operate directly on the space and cannot be undone. To access these scripts bring up the Python console (Ctrl+P) and type one of the following:

WorldEditor.restitchAllTerrainBlocks()

This will restitch the edges of terrain blocks in the current space so that they match. Occasionally cracks appear between chunks. Usually this can be fixed by painting with a zero-strength height brush over the cracks. This script will fix this issue for the entire space.

WorldEditor.regenerateThumbnails()

This will regenerate all of the thumbnails in the current space that are used in the project view.

WorldEditor.convertSpaceToZip()

This will convert the current space to use ZipSections instead of BinSections.

WorldEditor.regenerateLODs()

This will force the regeneration of terrain texture LODs on the current space.

^[1]For details, see Menu items.

Prev		Next
Chapter 1. Introduction	Home	Chapter 3. Model Editor
Copyright 1999-2012 BigWorld Pty. Ltd. All rights reserved. Proprietary commercial in confidence.
